The SAMOA DirectFlo Plastic Air Operated Double Diaphragm (AODD) Pump DF50-P sets a new standard in efficiency and reliability for fluid transfer applications. Featuring revolutionary DirectFlo Inside-out Technology, this pump allows for easy replacement of key components like air valves, diaphragms, balls, and seats without the need for complete disassembly. With overmolded diaphragms and patented frictionless pivot valves, this AODD pump offers exceptional longevity and minimal maintenance requirements. Ideal for corrosive, shear sensitive, and viscous fluids, the SAMOA DF50-P is a versatile and cost-effective solution for industries like paints, coatings, chemicals, pharmaceuticals, and more.
Product Specifications
Specifications Air Inlet Connection
3/8 in. NPSM Female
Specifications Air Motor Material
Conductive Polypropylene®
Specifications Check Valve Balls Material
Acetal | AISI 316 Stainless steel | Buna-N | PTFE
Specifications Check Valve Seat Material
AISI 316 Stainless Steel | PVDF
Specifications Delivery Per Cycle 2 X Strokes
0.05 gal | 0.2 L
Specifications Delivery Per Stroke
0.026 gal | 0.1 L
Specifications Diaphragm Material
Overmolded PTFE | Overmolded Santoprene® | Overmolded TPE (Hytrel®)

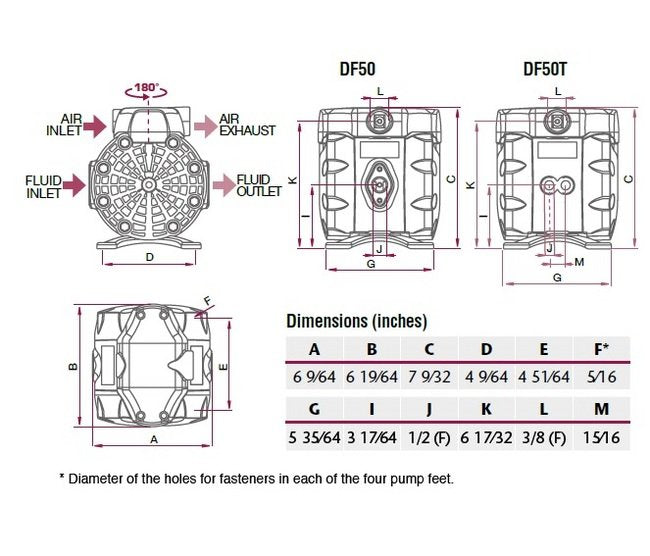

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Features
Perfect for Corrosive, Shear Sensitive, Suspended Solids, Viscous FluidsPaints, Solvents, Coatings, Oils, Chemicals, Dosing Adhesives, Coolant, Inks, Glue Marine, Varnish, Construction, Pharmaceutical, Food & BeverageRevolutionary DirectFlo Inside-out Technology-Fluid flows thru centerReplace Air Valve, Diaphragms, Balls & Seats WITHOUT Removing Pump from Piping or Complete Disassembly. No other AODD pump can do this.Extremely long diaphragm life-Overmolded diaphragms driven by uniform pressure gradient air (not the rod) with Reduced StrokePatented Frictionless (Non-Wearing) Pivot Valve, Reverses Stroke Instantaneously Fewest moving parts, (No Sliding Spools-No Dynamic O-Rings-No Drag, No Sliding Blocks, No Hysteresis.Low Friction-Low Volume Manifolds and Frictionless Pivot Air Valve result in Highest Efficiency AODD pump (Lowest Air Consumption)Adjustable Port Configurations for Optimum Piping InstallationFaster and Deeper Self-PrimingSmooth Running-Reduced Pulsation and VibrationRebuilds in 1/3 or Less the Time as any other AODD Pump.Mount in Virtually Any PlaneLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Connection
1/2" NPT Female
Specifications Maximum Dry Suction Lift
20 ft | 6 m

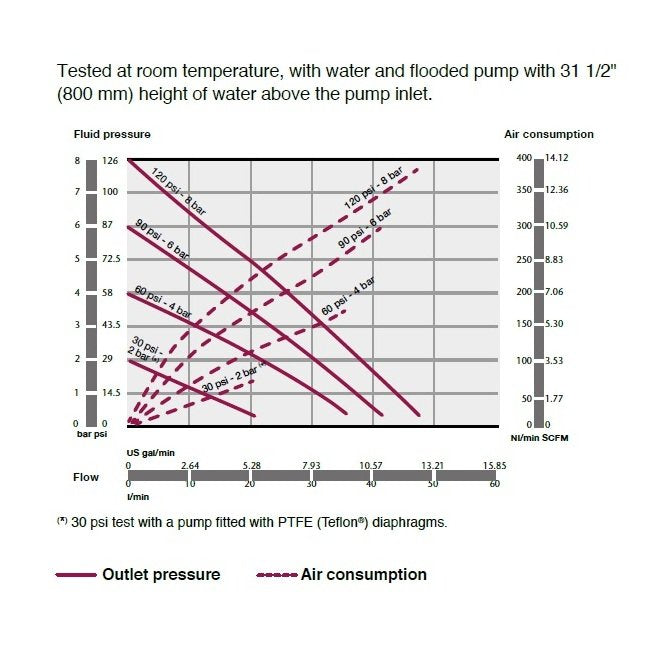

Specifications Maximum Flow
14 gpm | 50 L/min
Specifications Maximum Solids
1/8 in | 3 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
DF50-P
Specifications Pressure Range
22 to 115 psi | 1.5 to 8 bar
Specifications Pump Body Materials
Conductive Acetal (ATEX Pump) | Conductive Polypropylene (ATEX Pump) | Conductive PVDF (ATEX Pump) | Polypropylene | PVDF
Specifications Replacement For
All-Flo A050/D050/C050 | ARO Compact PD05/PE05/Pro 66605 | Dayton 6PY34/6PY39/3HJV8/6PY51/3HJW7/22A597 | Wilden Proflo (Shift) P1/P100 | Yamada NDP-15/DP-15/G15 | GRACO Husky 515 | Versamatic E5 | Warren Rupp-Sandpiper S05
Specifications Weight
4.85 lb | 2.2 kg
