SAMOA DirectFlo Plastic AODD Pump DF50T
SAMOA DirectFlo Plastic AODD Pump DF50T
SKU:POS-523fd9
Experience revolutionary DirectFlo Inside-Out Technology with SAMOA DirectFlo Plastic AODD Pump DF50T. Ideal for corrosive fluids, easy maintenance, and high efficiency.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
SAMOA DirectFlo Plastic AODD Pump DF50T
$899.99
Quantity: 1
Claim Your Seller Account
SAMOA DirectFlo Plastic AODD Pump DF50T
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAMOA DirectFlo Plastic Air Operated Double Diaphragm (AODD) Pump DF50T introduces revolutionary DirectFlo Inside-Out Technology, offering unparalleled efficiency and reliability. With overmolded diaphragms, frictionless air valves, and adjustable port configurations, this pump is perfect for corrosive, shear-sensitive, and viscous fluids. It allows for easy repair without complete disassembly, reducing downtime and maintenance costs. Meeting the highest industry standards, this pump delivers exceptional performance in various applications.
Product Specifications
Specifications Air Inlet Connection
3/8 in. NPSM Female
Specifications Air Motor Material
Conductive Polypropylene®
Specifications Check Valve Balls Material
Acetal | AISI 316 Stainless steel | Buna-N | PTFE
Specifications Check Valve Seat Material
AISI 316 Stainless Steel | PVDF
Specifications Delivery Per Cycle 2 X Strokes
0.05 gal | 0.2 L
Specifications Delivery Per Stroke
0.026 gal | 0.1 L
Specifications Diaphragm Material
Overmolded PTFE | Overmolded Santoprene® | Overmolded TPE (Hytrel®)

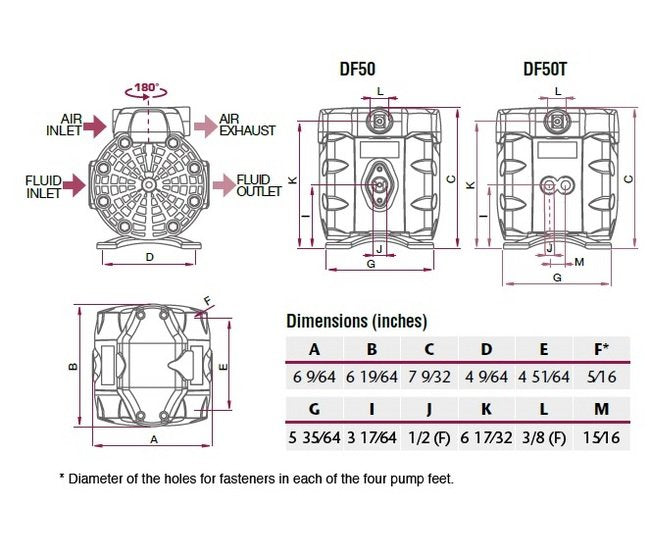

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Features
Perfect for Corrosive, Shear Sensitive, Suspended Solids, Viscous FluidsPaints, Solvents, Coatings, Oils, Chemicals, Dosing Adhesives, Coolant, Inks, Glue Marine, Varnish, Construction, Pharmaceutical, Food & BeverageRevolutionary DirectFlo Inside-out Technology-Fluid flows thru centerReplace Air Valve, Diaphragms, Balls & Seats WITHOUT Removing Pump from Piping or Complete Disassembly. No other AODD pump can do this.Extremely long diaphragm life-Overmolded diaphragms driven by uniform pressure gradient air (not the rod) with Reduced StrokePatented Frictionless (Non-Wearing) Pivot Valve, Reverses Stroke Instantaneously Fewest moving parts, (No Sliding Spools-No Dynamic O-Rings-No Drag, No Sliding Blocks, No Hysteresis.Low Friction-Low Volume Manifolds and Frictionless Pivot Air Valve result in Highest Efficiency AODD pump (Lowest Air Consumption)Adjustable Port Configurations for Optimum Piping InstallationFaster and Deeper Self-PrimingSmooth Running-Reduced Pulsation and VibrationRebuilds in 1/3 or Less the Time as any other AODD Pump.Mount in Virtually Any PlaneLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Connection
(2) 3/8" NPT Female suction x 1/2" NPT Female discharge
Specifications Maximum Dry Suction Lift
20 ft | 6 m

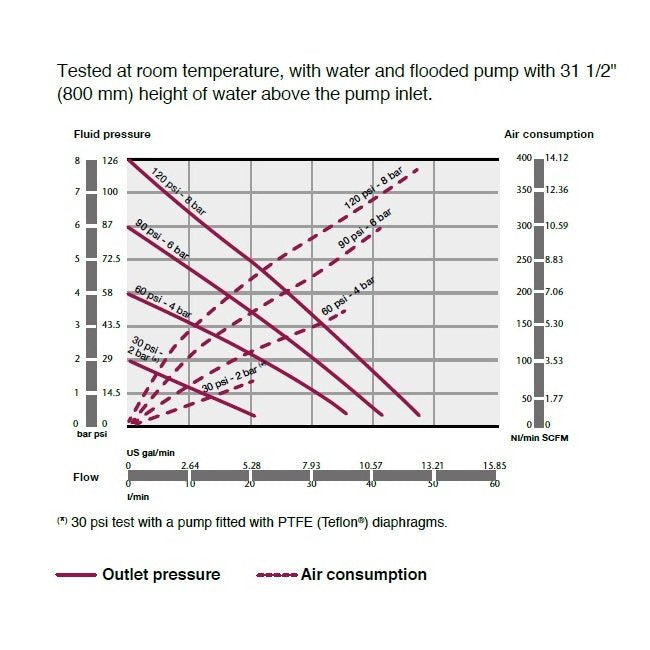

Specifications Maximum Flow
14 gpm | 50 L/min
Specifications Maximum Solids
1/8 in | 3 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
DF50T
Specifications Pressure Range
22 to 115 psi | 1.5 to 8 bar
Specifications Pump Body Materials
Conductive Acetal (ATEX Pump) | Conductive Polypropylene (ATEX Pump) | Conductive PVDF (ATEX Pump) | Polypropylene | PVDF
Specifications Replacement For
All-Flo A050/D050/C050 | ARO Compact PD05/PE05/Pro 66605 | Dayton 6PY34/6PY39/3HJV8/6PY51/3HJW7/22A597 | Wilden Proflo (Shift) P1/P100 | Yamada NDP-15/DP-15/G15 | GRACO Husky 515 | Versamatic E5 | Warren Rupp-Sandpiper S05
Specifications Weight
4.85 lb | 2.2 kg
