SAMOA DP200-P Plastic Air Operated Double Diaphragm Pump

Name: SAMOA DP200-P Plastic Air Operated Double Diaphragm Pump
Brand: AB Industrial
SKU: POS-4cbc8a
Price: 1499.99 USD
Availability: OutOfStock

SKU:POS-4cbc8a

Revolutionize fluid handling with the SAMOA DP200-P AODD Pump - efficient, reliable, and easy to maintain for diverse applications.

$1,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SAMOA DP200-P Plastic Air Operated Double Diaphragm Pump with revolutionary DirectFlo Inside-out Technology is a game-changer in the world of Air Diaphragm Pumps. Designed for efficiency and reliability, this pump features overmolded diaphragms, frictionless air valve, and advanced materials for handling various fluids. With easy repairability and exceptional performance, it's ideal for corrosive, shear-sensitive, and viscous fluids used in industries like paints, solvents, chemicals, and more.

Product Specifications

Specifications Air Inlet Connection

3/8 in. NPSM Female

Specifications Air Motor Material

Conductive PolypropyleneÂ®

Specifications Check Valve Balls Material

Acetal | AISI 316 Stainless steel | Buna-N | PTFE

Specifications Check Valve Seat Material

Acetal | Buna-N | PolypropyleneÂ® | SantopreneÂ® | TPE (HytrelÂ®)

Specifications Delivery Per Cycle 2 X Strokes

0.26 gal | 1 L

Specifications Delivery Per Stroke

0.13 gal | 0.5 L

Specifications Diaphragm Material

Overmolded Buna-N | Overmolded PTFE | Overmolded SantopreneÂ® | Overmolded TPE (HytrelÂ®)

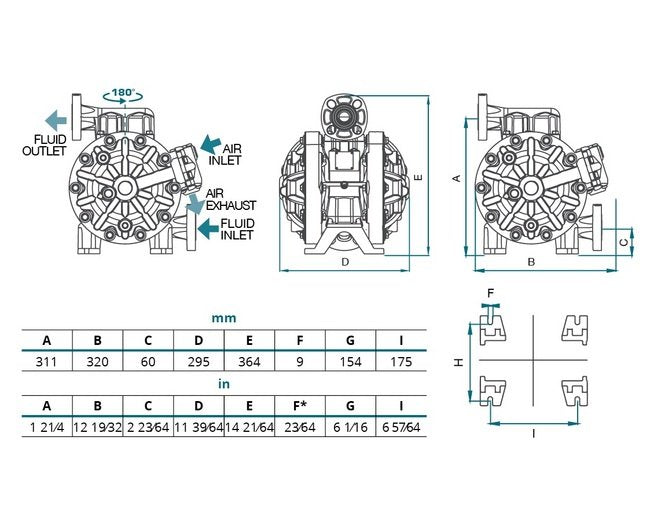

Specifications Dimensions

See photo and brochure for dimensions.

Specifications Features

Perfect for Corrosive, Shear Sensitive, Suspended Solids, Viscous FluidsPaints, Solvents, Coatings, Oils, Chemicals, Dosing Adhesives, Coolant, Inks, Glue Marine, Varnish, Construction, Pharmaceutical, Food & BeverageRevolutionary DirectFlo Inside-out Technology-Fluid flows thru centerReplace Air Valve, Diaphragms, Balls & Seats WITHOUT Removing Pump from Piping or Complete Disassembly. No other AODD pump can do this.Extremely long diaphragm life-Overmolded diaphragms driven by uniform pressure gradient air (not the rod) with Reduced StrokePatented Frictionless (Non-Wearing) Pivot Valve, Reverses Stroke Instantaneously Fewest moving parts, (No Sliding Spools-No Dynamic O-Rings-No Drag, No Sliding Blocks, No Hysteresis.Low Friction-Low Volume Manifolds and Frictionless Pivot Air Valve result in Highest Efficiency AODD pump (Lowest Air Consumption)Adjustable Port Configurations for Optimum Piping InstallationFaster and Deeper Self-PrimingSmooth Running-Reduced Pulsation and VibrationRebuilds in 1/3 or Less the Time as any other AODD Pump.Mount in Virtually Any PlaneLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock

Specifications Fluid Connection

1"x150lb ANSI FLANGE | DN 25 FLANGE

Specifications Maximum Dry Suction Lift

16 ft | 5 m

Specifications Maximum Flow

53 gpm | 200 L/min

Specifications Maximum Solids

1/4 in | 6 mm

Specifications Maximum Wet Suction Lift

26 ft | 8 m

Specifications Model Number

DP200-P

Specifications Pressure Range

22 to 115 psi | 1.5 to 8 bar

Specifications Pump Body Materials

Conductive Acetal (ATEX Pump) | Conductive Polypropylene (ATEX Pump) | Conductive PVDF (ATEX Pump) | Polypropylene | PVDF

Specifications Replacement For

Specifications Weight

23.15 lb | 10.5 kg

SAMOA DP200-P Plastic Air Operated Double Diaphragm Pump
