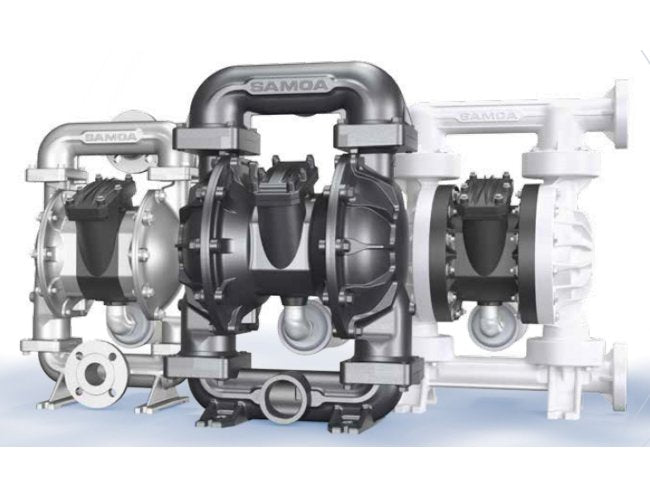

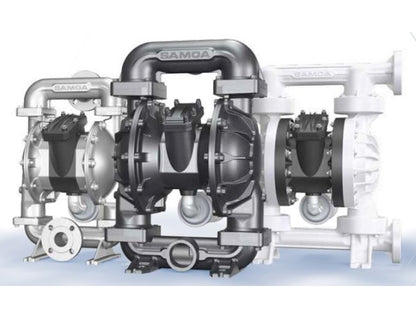

SAMOA Metal Air Operated Double Diaphragm Pump UP20-A
SAMOA Metal Air Operated Double Diaphragm Pump UP20-A
SKU:POS-13ca79
Revolutionary SAMOA Metal AODD Pump for industrial use. High efficiency, low maintenance, and ATEX-certified reliability.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
SAMOA Metal Air Operated Double Diaphragm Pump UP20-A
$2,399.99
Quantity: 1
Claim Your Seller Account
SAMOA Metal Air Operated Double Diaphragm Pump UP20-A
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAMOA Metal Air Operated Double Diaphragm Pump UP20-A is an innovative industrial pump designed for optimal performance and efficiency. With its revolutionary frictionless air pivot valve, this pump delivers higher efficiency, lower air consumption, and reduced vibration compared to competitors. It is perfect for handling abrasives, slurries, solvents, and more, making it ideal for industries such as quarry, mining, chemical processing, and food & beverage. Certified groundable to ATEX standards, this pump offers exceptional reliability, ease of maintenance, and interchangeable parts compatibility, ensuring seamless integration into existing systems.
Product Specifications
Applications Applications
Ceramic and PorcelainPaint and Varnish IndustryOil and Gas/PetrochemicalWaste Water/Water TreatmentMarine and ShipbuildingFilter PressMining and ConstructionChemical/ProcessingPulp and Paper/Cardboard
Specifications Air Exhaust Port
1-1/2 in. NPT Female
Specifications Air Inlet Connection
3/4 in. NPT Female
Specifications Aluminum Version Flanged Weight
106 lb | 48 kg
Specifications Aluminum Version Threaded Weight
101 lb | 46 kg
Specifications Center Body And Air Chamber Material
Aluminum | Conductive Polypropylene with Stainless Steel Air Chambers
Specifications Check Valve Balls Material
Acetal | Buna-N | PTFE | Stainless Steel AISI 316
Specifications Check Valve Seat Material
AISI 316 | Aluminum | Buna-N | Hardened Stainless Steel AISI 440 | PTFE | Santoprene® | Stainless Steel | TPE (Hytrel®)
Specifications Diaphragm Material
Conventional Buna-N | Conventional FKM | Conventional Santoprene® | Conventional TPE (Hytrel®) | Overmolded Buna-N | Overmolded PPTFE | Overmolded Santoprene® | Overmolded TPE (Hytrel®) | Two-piece PTFE with Santoprene® Backer
Specifications Dimensions

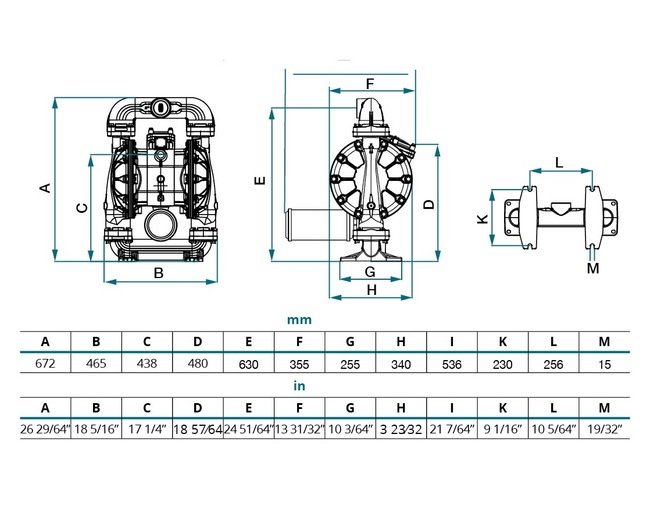

See photo and brochure for dimensions.
Specifications Displacement Per Cycle
1.2 gal | 4.5 L
Specifications Displacement Per Stroke
0.6 gal | 2.25 L
Specifications Ductile Iron Version Flanged Weight
172 lb | 78 kg
Specifications Ductile Iron Version Threaded Weight
163 lb | 74 kg
Specifications Features
Perfect for Abrasives, Slurries, Sludge, Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-PrimingQuarry, Mining, Waste Water, Ceramics, Filtration, Chemical Process, Paints, Solvents, Coatings, Oils, Chemicals, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, LubricationRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & Vibration than competition.Lube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Ductile Iron, Aluminum & 316SS Stainless Steel, Certified Groundable ATEX, Wear Resistant Urethane Coating Inside & OutOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Configurations (NPT or Flanged Port) for Optimum Piping InstallationSame Bolt Simplicity (Diaphragms & Manifold) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Chambers And Manifolds Material
Aluminum | Ductile Iron | Stainless Steel
Specifications Fluid Connection
2" NPT Female | 2"x150lb ANSI FLANGE | DN 50 FLANGE
Specifications Fluid Inletoutlet Ports Female
2 in. ANSI/DIN Flanged | 2 in. BSP Female Threaded | 2 in. NPT Female Threaded
Specifications Maximum Dry Suction Lift
16 ft | 5 m
Specifications Maximum Flow
172 gpm | 650 L/min
Specifications Maximum Solids
1/4 in | 6.4 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
UP20-A
Specifications Pressure Range
20 to 120 psi | 1.5 to 8 bar
Specifications Replacement For
All-Flo A200/ D200 | ARO EXP PD20/ PE20/ Pro 6662 | Dayton 3HJW6/ 6PY57/ 34TJ47/ 6PY46/ 3HJX2/ 22A599/ 34TJ45/ 34TJ46 | GRACO Husky 2150/ 2200 | Versamatic E2 | Warren Rupp-Sandpiper S20/ HDB2/ HDB50 | Wilden Proflo (Shift) P8/P800//P820 | Yamada NDP-50
Specifications Sound Level
85 dB at 50 Cycle/Min & 70 PSI dB
Specifications Stainless Steel Threaded Weight
168 lb | 76 kg
Specifications Stainless Steel Version Flanged Weight
181 lb | 82 kg
