The SAMOA Metal Air Operated Double Diaphragm (AODD) Pump DF250 is designed with revolutionary DirectFlo Inside-out Technology, ensuring maximum efficiency and reliability. This pump features overmolded diaphragms, a patented frictionless pivot valve, and adjustable port configurations, making it perfect for various applications including corrosive, shear-sensitive, and viscous fluids. With easy repair and maintenance, this pump offers exceptional longevity and performance, setting it apart as a top choice in the AODD pump market.
Product Specifications
Specifications Air Inlet Connection
1/2 in. NPSM Female
Specifications Air Motor Material
Aluminum
Specifications Check Valve Balls Material
Acetal | AISI 316 Stainless steel | Buna-N | PTFE
Specifications Check Valve Seat Material
AISI 316 Stainless Steel
Specifications Delivery Per Cycle 2 X Strokes
0.32 gal | 1.2 L
Specifications Delivery Per Stroke
0.16 gal | 0.6 L
Specifications Diaphragm Material
Overmolded Buna-N | Overmolded PTFE | Overmolded Santoprene® | Overmolded TPE (Hytrel®)

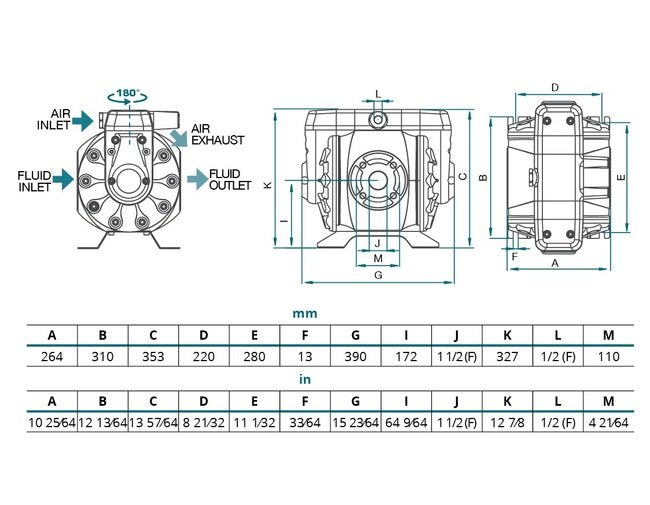

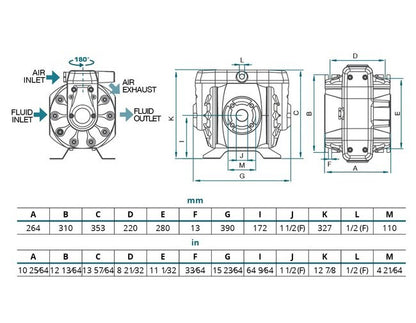

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Features
Perfect for Corrosive, Shear Sensitive, Suspended Solids, Viscous FluidsPaints, Solvents, Coatings, Oils, Chemicals, Dosing Adhesives, Coolant, Inks, Glue Marine, Varnish, Construction, Pharmaceutical, Food & BeverageRevolutionary DirectFlo Inside-out Technology-Fluid flows thru centerReplace Air Valve, Diaphragms, Balls & Seats WITHOUT Removing Pump from Piping or Complete Disassembly. No other AODD pump can do this.Extremely long diaphragm life-Overmolded diaphragms driven by uniform pressure gradient air (not the rod) with Reduced StrokePatented Frictionless (Non-Wearing) Pivot Valve, Reverses Stroke Instantaneously Fewest moving parts, (No Sliding Spools-No Dynamic O-Rings-No Drag, No Sliding Blocks, No Hysteresis.Low Friction-Low Volume Manifolds and Frictionless Pivot Air Valve result in Highest Efficiency AODD pump (Lowest Air Consumption)Adjustable Port Configurations for Optimum Piping InstallationFaster and Deeper Self-PrimingSmooth Running-Reduced Pulsation and VibrationRebuilds in 1/3 or Less the Time as any other AODD Pump.Mount in Virtually Any PlaneLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Connection
1"x150lb ANSI FLANGE | 1-1/2" NPT Female | DN 40 FLANGE
Specifications Maximum Dry Suction Lift
16 ft | 5 m

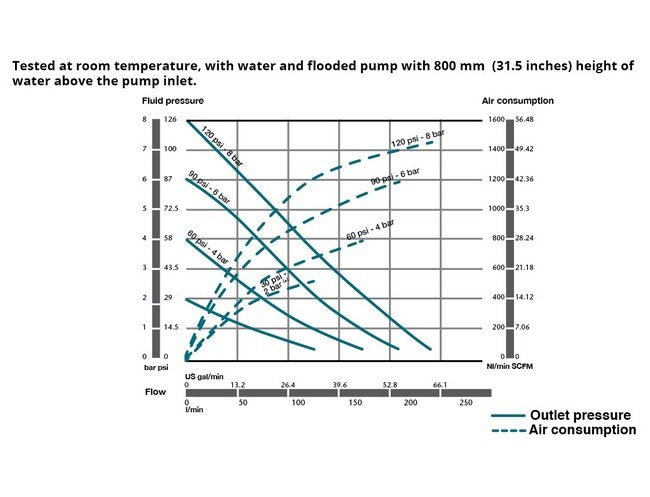

Specifications Maximum Flow
66 gpm | 250 L/min
Specifications Maximum Solids
1/4 in | 6 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
DF250
Specifications Pressure Range
22 to 115 psi | 1.5 to 8 bar
Specifications Pump Body Materials
Aluminum
Specifications Replacement For
Wilden Proflo P2/P200/P220/P230 | ARO EXP PD10/ PE10/ Pro 6661/ 66610 | GRACO Husky 1050 | Versamatic E1 | All-Flo A100/ D100 | Yamada NDP-25/ G-25/ NDP-32 | Dayton 6PY41/ 3HJV9/ 3HJW2/ 6PY54/ 34TJ42/ 22A593/ 6PY44/ 3HJW9 | Sandpiper S10/ S1F/ SB1/ SB25/ ST1/ ST25 | Wilden Proflo (Shift) P2/ P200/ P220/ P230
Specifications Weight
45 lb | 20 kg
