SAMOA Metal AODD Pump DP200-A
SAMOA Metal AODD Pump DP200-A
SKU:POS-808388
High-performance SAMOA Metal AODD Pump for safe fluid transfer in tough industrial environments.
Regular price
$879.00
Regular price
Sale price
$879.00
Unit price
per
Initiate Order
SAMOA Metal AODD Pump DP200-A
$879.00
Quantity: 1
Claim Your Seller Account
SAMOA Metal AODD Pump DP200-A
$879.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAMOA Metal Air Operated Double Diaphragm Pump DP200-A is a high-performance solution for dosing, spraying, and transferring various fluids. With a robust metal construction and ATEX certification, it ensures safe operation in potentially explosive atmospheres. Featuring a maximum flow rate of 53 gpm and a pressure range of 22 to 115 psi, this pump is designed for durability and efficiency, making it ideal for tough applications in industrial settings.
Product Specifications
Specifications Air Inlet Connection
3/8 in. NPSM Female
Specifications Air Motor Material
Aluminum
Specifications Check Valve Balls Material
Acetal | Buna-N | PTFE | Stainless Steel AISI 316
Specifications Check Valve Seat Material
Aluminum | Buna-N | Santoprene® | Stainless Steel AISI 316 | TPE (Hytrel®)
Specifications Delivery Per Cycle 2 X Strokes
0.26 gal | 1 L
Specifications Delivery Per Stroke
0.13 gal | 0.5 L
Specifications Diaphragm Material
Buna-N | PTFE | Santoprene® | TPE (Hytrel®)

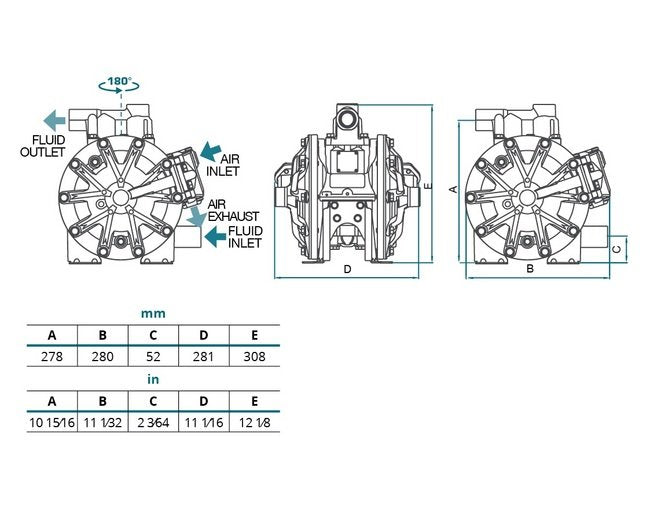

Specifications Dimensions
Dimension F, G, and H - Diameters of the holes for fasteners in each of the four pump feet.
Specifications Fluid Connection
1" NPT Female
Specifications Maximum Dry Suction Lift
16 ft | 5 m
Specifications Maximum Flow
53 gpm | 200 L/min
Specifications Maximum Solids
1/4 in | 6 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
DP200-A
Specifications Note For Approximate Delivery Per Stroke
Data measured with water, air inlet pressure 100 psi (7 bar), 68 ºF (20 ºC).
Specifications Note For Delivery Per Cycle 2 X Strokes
Data measured with water, air inlet pressure 100 psi (7 bar), 68 ºF (20 ºC).
Specifications Note For Maximum Dry Suction Lift
Data measured with water, air inlet pressure 100 psi (7 bar), 68 ºF (20 ºC).
Specifications Note For Maximum Flow
Data measured with water, air inlet pressure 100 psi (7 bar), 68 ºF (20 ºC).
Specifications Note For Maximum Wet Suction Lift
Data measured with water, air inlet pressure 100 psi (7 bar), 68 ºF (20 ºC).
Specifications Pressure Range
22 to 115 psi | 1.5 to 8 bar
Specifications Pump Body Materials
AISI 316 Stainless Steel | Aluminum
Specifications Weight
23.35 lb | 11.5 kg
