SAMOA Metal AODD Pump - Model UP30-A
SAMOA Metal AODD Pump - Model UP30-A
SKU:POS-d10381
Revolutionary efficiency meets industrial reliability; ideal for handling abrasives, slurries, and corrosive materials with ease.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
SAMOA Metal AODD Pump - Model UP30-A
$2,699.99
Quantity: 1
Claim Your Seller Account
SAMOA Metal AODD Pump - Model UP30-A
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

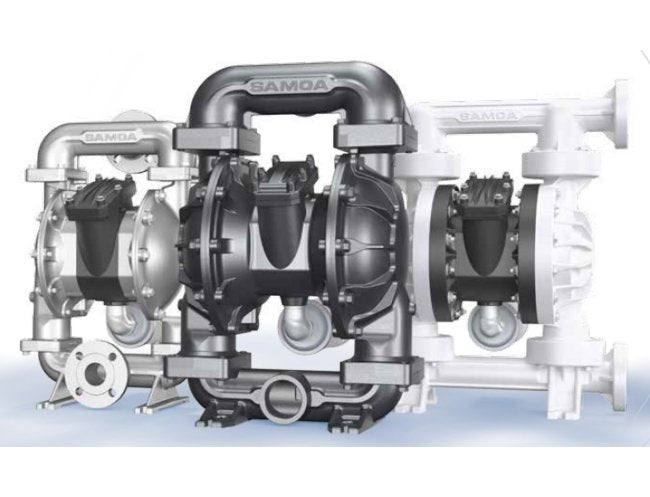

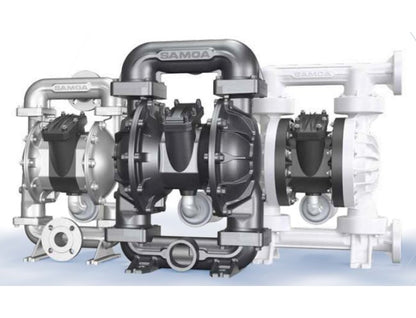

The SAMOA Metal Air Operated Double Diaphragm (AODD) Pump, Model UP30-A, offers revolutionary efficiency with its frictionless air pivot valve, providing higher efficiency, lower air consumption, and minimal pulsation and vibration. Designed for handling abrasives, slurries, resins, corrosive materials, and more, this pump ensures reliability, easy maintenance, and versatile configurations to suit various applications. With compliance to industry standards, including ATEX certification and wear-resistant coatings, this pump is a superior choice for industrial, mining, and chemical processes.
Product Specifications
Applications Applications
Ceramic and Porcelain Paint and Varnish Industry Oil and Gas/Petrochemical Waste Water/Water Treatment Marine and Shipbuilding Filter Press Mining and Construction Chemical/Processing Pulp and Paper/Cardboard
Specifications Air Exhaust Port
1-1/2 in. NPT Female
Specifications Air Inlet Connection
3/4 in. NPT Female
Specifications Aluminum Version Flanged Weight
156.5 lb | 71 kg
Specifications Aluminum Version Threaded Weight
141 lb | 64 kg
Specifications Center Body And Air Chamber Material
Conductive Polypropylene®
Specifications Check Valve Balls Material
Buna-N | FKM | PTFE | Santoprene® | TPE (Hytrel®)
Specifications Check Valve Seat Material
Polypropylene® | PTFE
Specifications Diaphragm Material
Conventional Buna-N | Conventional FKM | Conventional Santoprene® | Conventional TPE (Hytrel®) | Overmolded Buna-N | Overmolded PPTFE | Overmolded Santoprene® | Overmolded TPE (Hytrel®) | Two-piece PTFE with Santoprene® Backer

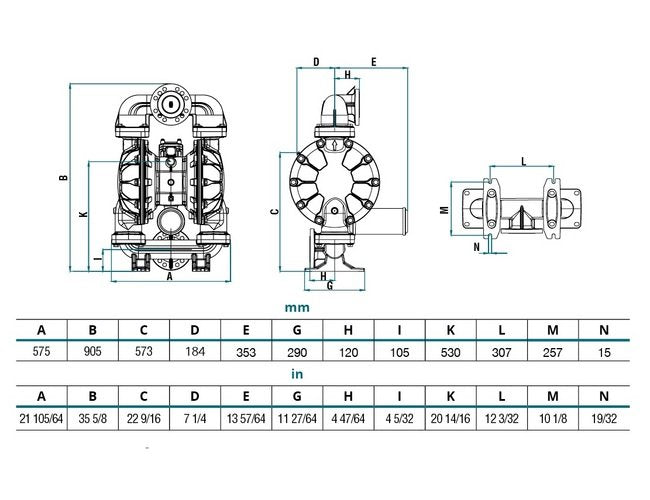

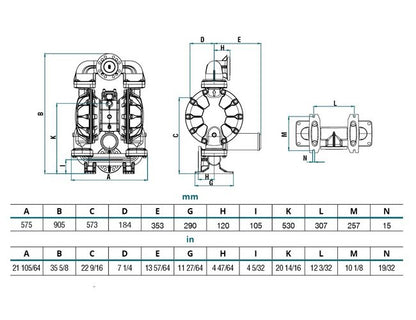

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Displacement Per Cycle
2.6 gal | 10 L
Specifications Features
Perfect for Abrasives, Slurries, Sludge, Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-PrimingQuarry, Mining, Waste Water, Ceramics, Filtration, Chemical Process, Paints, Solvents, Coatings, Oils, Chemicals, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, LubricationRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & Vibration than competition.Lube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Ductile Iron, Aluminum & 316SS Stainless Steel, Certified Groundable ATEX, Wear Resistant Urethane Coating Inside & OutOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Configurations (NPT or Flanged Port) for Optimum Piping InstallationSame Bolt Simplicity (Diaphragms & Manifold) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Chambers And Manifolds Material
Conductive Polypropylene® | Polypropylene | PVDF
Specifications Fluid Connection
3" NPT Female | 3"x150lb ANSI FLANGE | DN 80 FLANGE
Specifications Fluid Inletoutlet Ports Female
3 in. ANSI/DIN Flanged | 3 in. BSP Female Threaded | 3 in. NPT Female Threaded
Specifications Maximum Dry Suction Lift
19.7 ft | 6 m

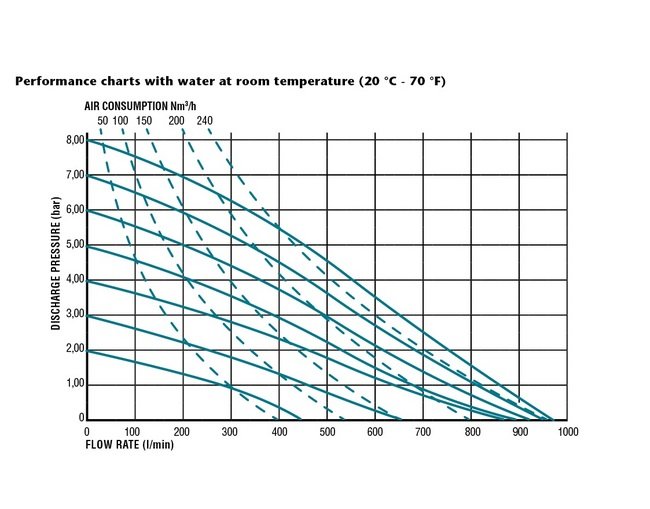

Specifications Maximum Flow
264 gpm | 1000 L/min
Specifications Maximum Solids
1/2 in | 12.7 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
UP30-A
Specifications Pressure Range
20 to 120 psi | 1.5 to 8 bar
Specifications Replacement For
All-Flo A300 | ARO EXP PD30/ PE30/ Pro 6663 | Dayton 22A595/ 22A596/ 22A601 | GRACO Husky 3300 | Versamatic E3 | Warren Rupp-Sandpiper S30/ HDB3 | Wilden Proflo (Shift) P1500 | Yamada NDP-80
Specifications Sound Level
83 dB at 50 Cycle/Min & 70 PSI dB
Specifications Stainless Steel Threaded Weight
260 lb | 118 kg
Specifications Stainless Steel Version Flanged Weight
275.6 lb | 125 kg
