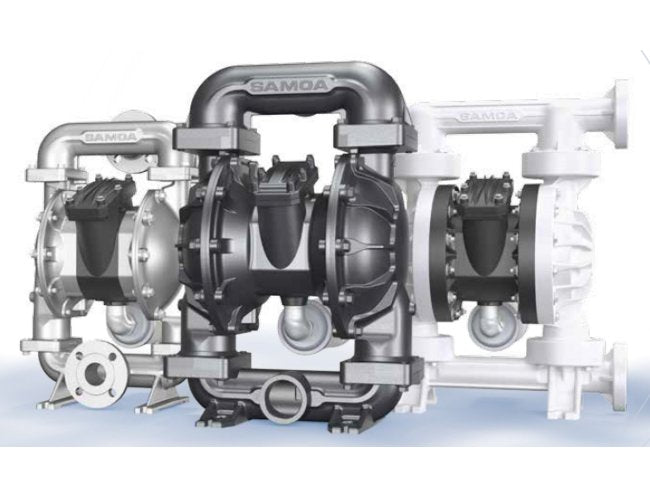

SAMOA Metal AODD Pumps: UP15-A Model

Name: SAMOA Metal AODD Pumps: UP15-A Model
Brand: AB Industrial
SKU: POS-712edd
Price: 1899.99 USD
Availability: OutOfStock

SKU:POS-712edd

Revolutionize your industrial fluid handling with SAMOA Metal AODD Pump: UP15-A Model. High efficiency, low maintenance, and unmatched reliability.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SAMOA Metal Air Operated Double Diaphragm (AODD) Pump, model UP15-A, sets a new benchmark for industrial pumping efficiency and reliability. Designed with revolutionary frictionless air pivot valve technology, this pump ensures higher efficiency, lower air consumption, and reduced pulsation and vibration compared to competitors. Perfect for handling abrasives, slurries, sludge, corrosive fluids, and more, this pump is ideal for industries such as mining, chemical processing, and wastewater management. With features like lube-free operation, easy maintenance, and a wide range of compatible spare parts, the SAMOA UP15-A Pump offers unparalleled performance and longevity.

Product Specifications

Specifications Features

Perfect for Abrasives, Slurries, Sludge, Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-PrimingQuarry, Mining, Waste Water, Ceramics, Filtration, Chemical Process, Paints, Solvents, Coatings, Oils, Chemicals, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, LubricationRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & Vibration than competition.Lube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Ductile Iron, Aluminum & 316SS Stainless Steel, Certified Groundable ATEX, Wear Resistant Urethane Coating Inside & OutOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Configurations (NPT or Flanged Port) for Optimum Piping InstallationSame Bolt Simplicity (Diaphragms & Manifold) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock

Specifications Fluid Connection

1-1/2 NPT Female | 1-1/2"x150lb ANSI FLANGE | DN 40 FLANGE

Specifications Maximum Flow

120 gpm

Specifications Model Number

UP15-A

Specifications Pressure Range

20 to 120 psi | 1.5 to 8 bar

Specifications Replacement For

SAMOA Metal AODD Pumps: UP15-A Model
