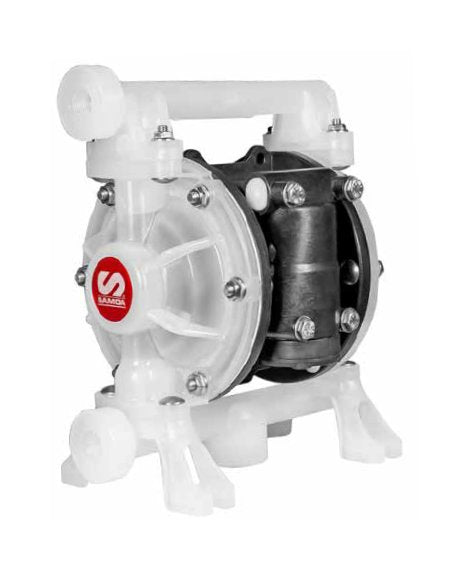

SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump UP03
SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump UP03
SKU:POS-f45641
Revolutionary SAMOA Plastic AODD Pump for efficient fluid handling in diverse industries. Reliable, low-maintenance design.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump UP03
$749.99
Quantity: 1
Claim Your Seller Account
SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump UP03
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAMOA Plastic Air Operated Double Diaphragm Pump UP03 is a revolutionary solution designed to match major competitive brands for easy interchangeability. With features like a frictionless air pivot valve that reverses stroke instantaneously, this pump offers higher efficiency, lower air consumption, and reduced pulsation and vibration. Ideal for handling abrasives, slurries, solvents, corrosive fluids, and more, it is perfect for various industries including mining, water treatment, chemical processing, and food & beverage. Built for reliability and ease of maintenance, this pump operates smoothly with lube-free components and reversible seats to reduce replacement costs. Available in different materials and configurations, it meets the diverse needs of institutional and government buyers.
Product Specifications
Specifications Air Exhaust Port
1/2 in. NPT Female
Specifications Air Inlet Connection
1/4 in. NPSM Female
Specifications Conductive Acetal Version Weight
4.6 lb | 2.1 kg
Specifications Conductive Polypropylene Version Weight
4.4 lb | 2 kg

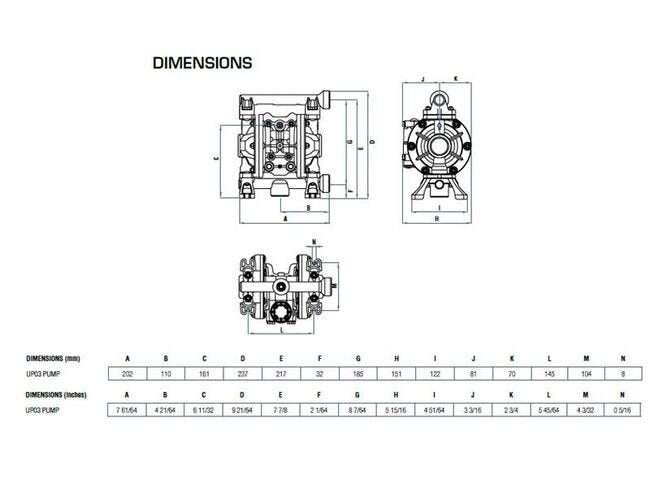

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Displacement Per Cycle
0.02 gal | 0.081 L
Specifications Displacement Per Stroke
0.01 gal | 0.0405 L
Specifications Features
Perfect for Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-Priming, Chemicals, Acids, Caustics, AlkalisFiltration, Chemical Process, Paints, Solvents, Coatings, Oils, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, Plating, SemiconductorRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & VibrationLube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Polypropylene, PVDF, Certified Groundable ATEXOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Port Configurations with ANSI/DIN FlangesSame Bolt Simplicity (Diaphragms & Manifolds) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Connection
3/8â NPT Female
Specifications Fluid Inlet And Outlet Connections Multiports
3/8 in. NPT Female (F) Threaded / 3/8 in. BSP Female (F) Threaded
Specifications Maximum Dry Suction Lift
10 ft | 3 m

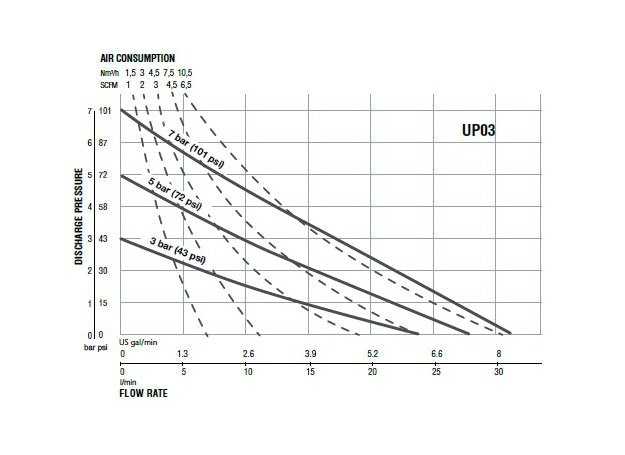

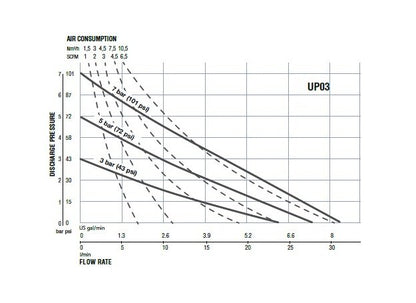

Specifications Maximum Flow
8.2 gpm | 31 L/min
Specifications Maximum Solids
1/16 in | 1.6 mm
Specifications Maximum Wet Suction Lift
23 ft | 7 m
Specifications Model Number
UP03
Specifications Polypropylene Version Weight
4 lb | 1.8 kg
Specifications Polyvinylidene Fluoride Pvdf Version Weight
5.1 lb | 2.3 kg
Specifications Pressure Range
20 to 120 psi | 1.5 to 7 bar
Specifications Pressure Ratio
1:1
Specifications Sound Level
75 dB at 50 Cycle/Min at 5 bar dB
