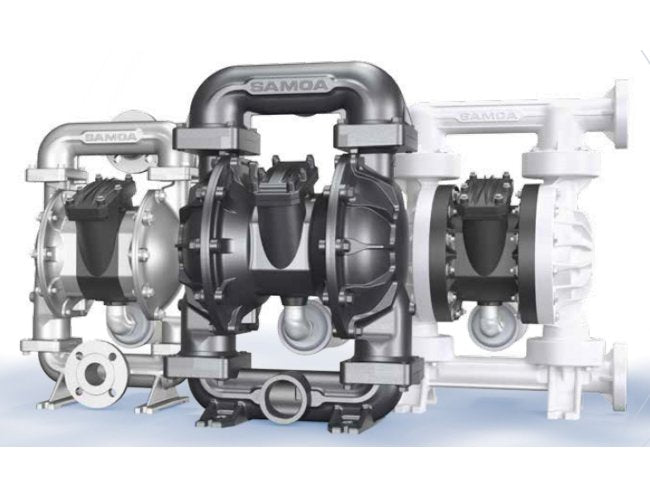

SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump - UP15-B

Name: SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump - UP15-B
Brand: AB Industrial
SKU: POS-495b98
Price: 899.99 USD
Availability: OutOfStock

SKU:POS-495b98

Revolutionize your industrial pumping with SAMOA's UP15-B AODD Pump - efficient, durable, and low-maintenance.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump in model UP15-B is designed for industrial applications requiring efficiency and durability. Featuring a revolutionary frictionless Air Pivot Valve for instant stroke reversal, this pump offers superior performance with lower air consumption, reduced pulsation, and vibration. Ideal for handling abrasives, slurries, resins, corrosive fluids, and more, this pump is self-priming and suitable for various industries including mining, wastewater treatment, chemical processes, and pharmaceutical production. With interchangeable parts compatible with major brands, easy maintenance, and a leak-free design, this pump ensures reliable operation in challenging environments.

Product Specifications

Specifications Dimensions

See photo and brochure for dimensions.

Specifications Features

Perfect for Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-Priming, Chemicals, Acids, Caustics, AlkalisFiltration, Chemical Process, Paints, Solvents, Coatings, Oils, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, Plating, SemiconductorRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & VibrationLube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Polypropylene, PVDF, Certified Groundable ATEXOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Port Configurations with ANSI/DIN FlangesSame Bolt Simplicity (Diaphragms & Manifolds) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock

Specifications Fluid Connection

1-1/2""x150lb ANSI FLANGE | DN 40 FLANGE

Specifications Maximum Flow

120 gpm

Specifications Maximum Solids

1/4 in | 6 mm

Specifications Model Number

UP15-B

Specifications Pressure Range

20 to 120 psi | 1.5 to 8 bar

Specifications Replacement For

SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump - UP15-B
