SAMOA Plastic AODD Pump DF100-P
SAMOA Plastic AODD Pump DF100-P
SKU:POS-9d2621
Revolutionary SAMOA Plastic AODD Pump for efficient and reliable fluid handling. Easy repairs, reduced air consumption, and versatile application.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
SAMOA Plastic AODD Pump DF100-P
$899.99
Quantity: 1
Claim Your Seller Account
SAMOA Plastic AODD Pump DF100-P
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump DF100-P features revolutionary DirectFlo Inside-out Technology that enhances efficiency and reliability. Perfect for handling corrosive and viscous fluids, this AODD pump offers easy repairs without complete disassembly. With overmolded diaphragms and a patented frictionless pivot valve, it ensures longevity and minimal maintenance. Enjoy reduced air consumption, self-priming capabilities, smooth operation, and leak-free performance. Suitable for various industries including chemical, pharmaceutical, and food & beverage, this pump sets the standard for efficiency and durability.
Product Specifications
Specifications Air Inlet Connection
3/8 in. NPSM Female
Specifications Air Motor Material
Conductive Polypropylene®
Specifications Check Valve Balls Material
Acetal | AISI 316 Stainless steel | Buna-N | PTFE
Specifications Check Valve Seat Material
AISI 316 Stainless Steel | PVDF
Specifications Delivery Per Cycle 2 X Strokes
0.13 gal | 0.5 L
Specifications Delivery Per Stroke
0.07 gal | 0.25 L
Specifications Diaphragm Material
Overmolded PTFE | Overmolded Santoprene® | Overmolded TPE (Hytrel®)

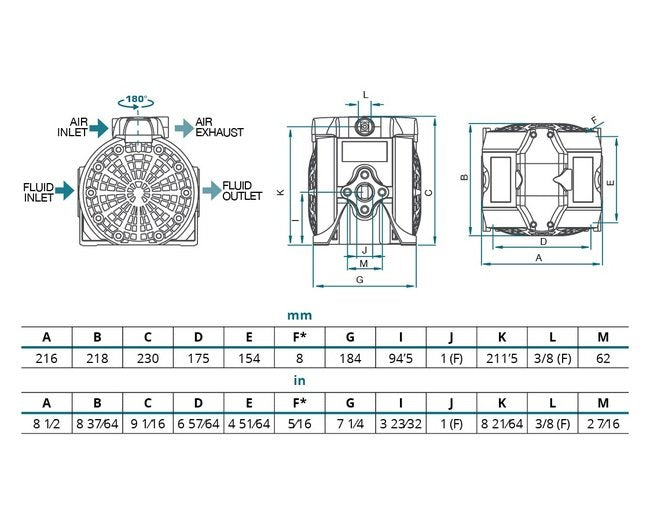

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Features
Perfect for Corrosive, Shear Sensitive, Suspended Solids, Viscous FluidsPaints, Solvents, Coatings, Oils, Chemicals, Dosing Adhesives, Coolant, Inks, Glue Marine, Varnish, Construction, Pharmaceutical, Food & BeverageRevolutionary DirectFlo Inside-out Technology-Fluid flows thru centerReplace Air Valve, Diaphragms, Balls & Seats WITHOUT Removing Pump from Piping or Complete Disassembly. No other AODD pump can do this.Extremely long diaphragm life-Overmolded diaphragms driven by uniform pressure gradient air (not the rod) with Reduced StrokePatented Frictionless (Non-Wearing) Pivot Valve, Reverses Stroke Instantaneously Fewest moving parts, (No Sliding Spools-No Dynamic O-Rings-No Drag, No Sliding Blocks, No Hysteresis.Low Friction-Low Volume Manifolds and Frictionless Pivot Air Valve result in Highest Efficiency AODD pump (Lowest Air Consumption)Adjustable Port Configurations for Optimum Piping InstallationFaster and Deeper Self-PrimingSmooth Running-Reduced Pulsation and VibrationRebuilds in 1/3 or Less the Time as any other AODD Pump.Mount in Virtually Any PlaneLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Connection
3/4-1" NPT Female
Specifications Maximum Dry Suction Lift
15 ft | 4.5 m

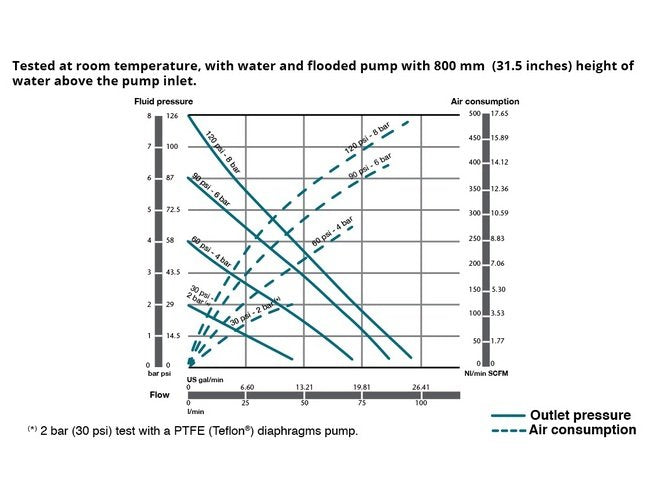

Specifications Maximum Flow
28 gpm | 100 L/min
Specifications Maximum Solids
3/16 in | 4 mm
Specifications Maximum Wet Suction Lift
23 ft | 7 m
Specifications Model Number
DF100-P
Specifications Pressure Range
22 to 115 psi | 1.5 to 8 bar
Specifications Pump Body Materials
Conductive Acetal (ATEX Pump) | Conductive Polypropylene (ATEX Pump) | Conductive PVDF (ATEX Pump) | Polypropylene | PVDF
Specifications Replacement For
All-Flo A075/D075 | ARO Compact PD07/PE07/Pro 66607 | Dayton 6PY35/6PY40/6PY53/6PY47/6PY52/34TJ41/6PY43/3HJW8/22A592 | GRACO Husky 716 | Versamatic E7 | Warren Rupp-Sandpiper S07 | Yamada NDP-20
Specifications Weight
11.24 lb | 5.1 kg
