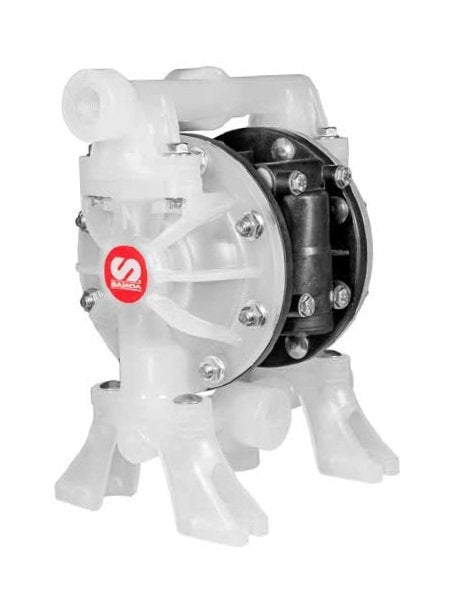

The SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump in UP05 model offers revolutionary performance with its frictionless air pivot valve, ensuring higher efficiency, lower air consumption, and reduced pulsation. Perfect for handling abrasives, slurries, chemicals, and viscous fluids, this pump provides reliability with features like reversible seats, leak-free bolted diaphragms, and low sound levels. Available in Polypropylene, PVDF, and conductive materials, this pump is ideal for various industries including quarry, mining, and chemical processes.
Product Specifications
Specifications Air Exhaust Port
1/2 in. NPT Female
Specifications Air Inlet Connection
1/4 in. NPSM Female
Specifications Conductive Acetal Version Weight
7.3 lb | 3.3 kg
Specifications Conductive Polypropylene Version Weight
6.6 lb | 3 kg

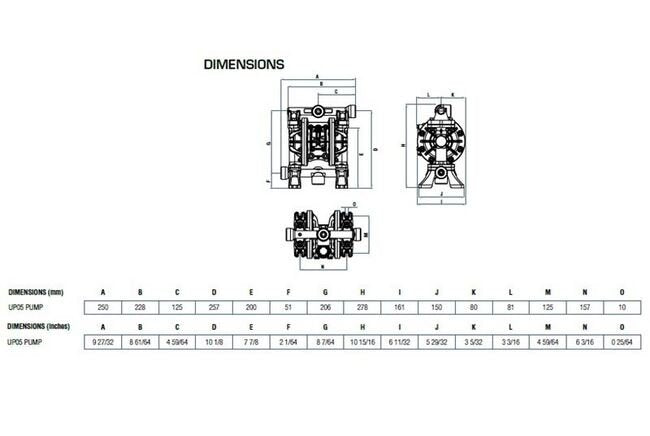

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Displacement Per Cycle
0.04 gal | 0.15 L
Specifications Displacement Per Stroke
0.02 gal | 0.075 L
Specifications Features
Perfect for Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-Priming, Chemicals, Acids, Caustics, AlkalisFiltration, Chemical Process, Paints, Solvents, Coatings, Oils, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, Plating, SemiconductorRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & VibrationLube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Polypropylene, PVDF, Certified Groundable ATEXOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Port Configurations with ANSI/DIN FlangesSame Bolt Simplicity (Diaphragms & Manifolds) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Connection
1/2â NPT Female
Specifications Fluid Inlet And Outlet Connections Multiports
1/2 in. NPT Female (F) Threaded / 1/2 in. BSP Female (F) Threaded
Specifications Maximum Dry Suction Lift
16 ft | 5 m
Specifications Maximum Flow
14.3 gpm | 54 L/min
Specifications Maximum Solids
3/32 in | 2.5 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
UP05
Specifications Polypropylene Version Weight
6 lb | 2.7 kg
Specifications Polyvinylidene Fluoride Pvdf Version Weight
8.2 lb | 3.7 kg
Specifications Pressure Range
20 to 120 psi | 1.5 to 7 bar
Specifications Pressure Ratio
1:1
Specifications Sound Level
75 dB at 50 Cycle/Min at 5 bar dB
