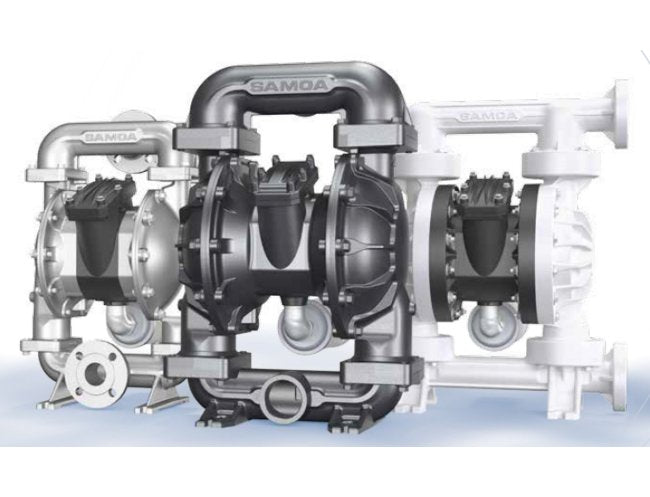

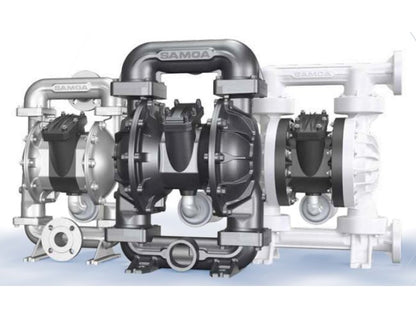

The SAMOA Plastic Air Operated Double Diaphragm (AODD) Pump UP20-B is a versatile and efficient solution for various applications including handling abrasives, slurries, chemicals, and more. Featuring a revolutionary frictionless air pivot valve, this pump ensures higher efficiency, lower air consumption, and reduced pulsation compared to competitors. With a maximum flow rate of 172 gpm and pressure range from 20 to 120 psi, it is suitable for industries such as mining, waste water treatment, chemical processes, and food & beverage. Designed for easy interchangeability with major brands, this pump offers reliability, low maintenance, and compatibility with different fluids.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
Oil and Gas/Petrochemical Paint and Coating Industry Chemical Processing Waste Water/Water Treatment Filter Press (Water Disposal) Plant and Mechanical Engineering Pulp and Paper/Cardboard Power Stations (Energy) Tank Farm/Bulk Transfer
Specifications Air Exhaust Port
1-1/2 in. NPT Female
Specifications Air Inlet Connection
3/4 in. NPT Female
Specifications Center Body And Air Chamber Material
Conductive Polypropylene®
Specifications Check Valve Balls Material
Buna-N | FKM | PTFE | Santoprene® | TPE (Hytrel®)
Specifications Check Valve Seat Material
Polypropylene® | PTFE
Specifications Diaphragm Material
Conventional Buna-N | Conventional FKM | Conventional Santoprene® | Conventional TPE (Hytrel®) | Overmolded Buna-N | Overmolded PPTFE | Overmolded Santoprene® | Overmolded TPE)(Hytrel®) | Two-piece PTFE with Santoprene® Backer
Specifications Dimensions

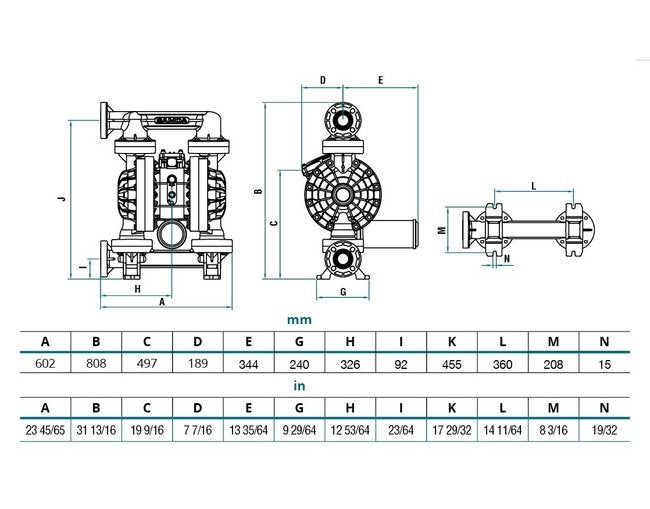

See photo and brochure for dimensions.
Specifications Displacement Per Cycle
1.2 gal | 4.5 L
Specifications Displacement Per Stroke
0.6 gal | 2.25 L
Specifications Features
Perfect for Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-Priming, Chemicals, Acids, Caustics, AlkalisFiltration, Chemical Process, Paints, Solvents, Coatings, Oils, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, Plating, SemiconductorRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & VibrationLube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Polypropylene, PVDF, Certified Groundable ATEXOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Port Configurations with ANSI/DIN FlangesSame Bolt Simplicity (Diaphragms & Manifolds) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Chambers And Manifolds Material
Conductive Polypropylene® | Polypropylene | PVDF
Specifications Fluid Connection
2"x150lb ANSI FLANGE | DN 50 FLANGE
Specifications Fluid Inletoutlet Ports Flanged
2 in. ANSI/DIN Side Ends
Specifications Maximum Dry Suction Lift
16 ft | 5 m
Specifications Maximum Flow
172 gpm | 650 L/min
Specifications Maximum Solids
1/4 in | 6.4 mm
Specifications Maximum Wet Suction Lift
26 ft | 8 m
Specifications Model Number
UP20-B
Specifications Polypropylene Version Weight
92 lb | 42 kg
Specifications Polyvinylidene Fluoride Pvdf Version Weight
119 lb | 54 kg
Specifications Pressure Range
20 to 120 psi | 1.5 to 8 bar
Specifications Sound Level
85 dB at 50 Cycle/Min & 70 PSI dB
