SAMOA UP10 Plastic AODD Pump

Name: SAMOA UP10 Plastic AODD Pump
Brand: AB Industrial
SKU: POS-f99d6d
Price: 849.99 USD
Availability: OutOfStock

SKU:POS-f99d6d

Revolutionary efficiency meets versatile performance with the SAMOA UP10 Plastic AODD Pump, perfect for handling various fluids and solids.

$849.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

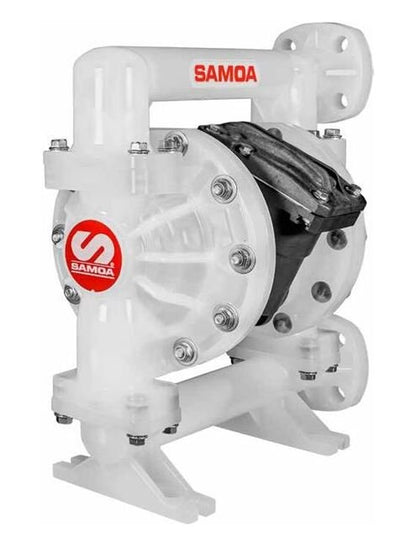

The SAMOA UP10 Plastic Air Operated Double Diaphragm Pump offers revolutionary efficiency with its frictionless air pivot valve. Ideal for handling abrasives, sludges, chemicals, and more, this pump ensures high performance, low air consumption, and minimal pulsation. With easy interchangeability, lube-free operation, and reliable construction, it meets the demands of various industries including quarry, mining, and chemical processing.

Product Specifications

Specifications Air Exhaust Port

1 in. NPT Female

Specifications Air Inlet Connection

1/2 in. NPSM Female

Specifications Conductive Polypropylene Version Flanged Weight

26.4 lb | 12 kg

Specifications Conductive Polypropylene Version Threaded Weight

25.6 lb | 11.6 kg

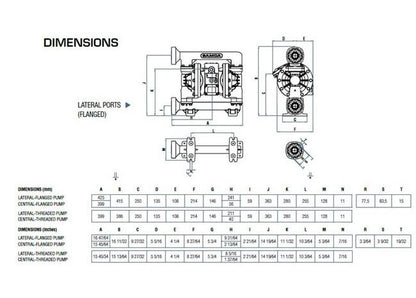

Specifications Dimensions

See photo and brochure for dimensions.

Specifications Displacement Per Cycle

0.2 gal | 0.85 L

Specifications Displacement Per Stroke

0.1 gal | 0.4255 L

Specifications Features

Perfect for Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-Priming, Chemicals, Acids, Caustics, AlkalisFiltration, Chemical Process, Paints, Solvents, Coatings, Oils, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, Plating, SemiconductorRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & VibrationLube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Polypropylene, PVDF, Certified Groundable ATEXOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Port Configurations with ANSI/DIN FlangesSame Bolt Simplicity (Diaphragms & Manifolds) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock

Specifications Fluid Connection

1â NPT Female 1âx 150 Lb. ANSI Flange DN25 Flange

Specifications Fluid Inlet And Outlet Connections Multiports

1 in. BSP or NPT Female (F) Threaded Flange DIN DN25 or ANSI 1 in.

Specifications Maximum Dry Suction Lift

16 ft | 5 m

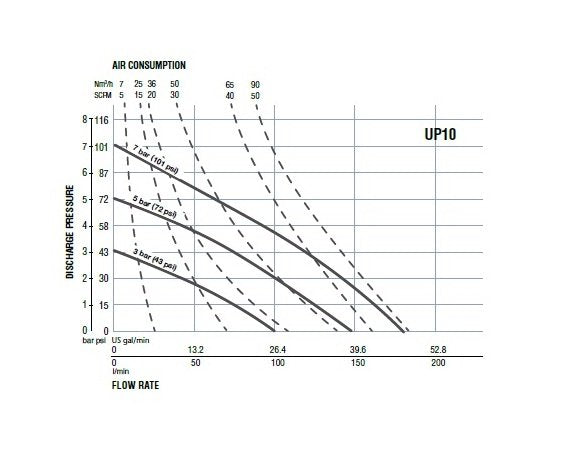

Specifications Maximum Flow

53 gpm | 200 L/min

Specifications Maximum Solids

1/4 in | 6.4 mm

Specifications Maximum Wet Suction Lift

26 ft | 8 m

Specifications Model Number

UP10

Specifications Polypropylene Version Flanged Weight

23.1 lb | 10.5 kg

Specifications Polypropylene Version Threaded Weight

22.5 lb | 10.2 kg

Specifications Polyvinylidene Fluoride Pvdf Version Flanged Weig

31.1 lb | 14.1 kg

Specifications Polyvinylidene Fluoride Pvdf Version Threaded Wei

29.8 lb | 13.5 kg

Specifications Pressure Range

20 to 100 psi | 1.5 to 7 bar

Specifications Pressure Ratio

1:1

Specifications Replacement For

Specifications Sound Level

75 dB at 50 Cycle/Min at 5 bar dB
