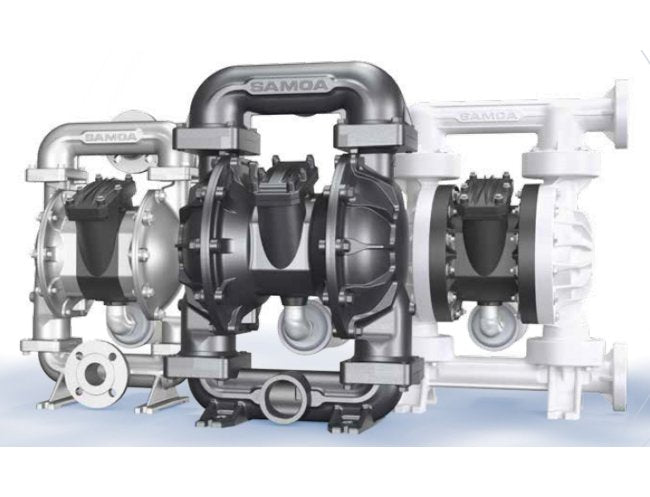

SAMOA UP30-B Plastic Air Operated Double Diaphragm Pump

SAMOA UP30-B Plastic Air Operated Double Diaphragm Pump

POS-9aff07

Revolutionary frictionless SAMOA UP30-B pump for efficient, low-vibration pumping of abrasive, corrosive fluids with lube-free operation.

$1,299.99
$1,299.99
Sale

Initiate Order

SAMOA UP30-B Plastic Air Operated Double Diaphragm Pump

SAMOA UP30-B Plastic Air Operated Double Diaphragm Pump

$1,299.99

Quantity: 1

Claim Your Seller Account

SAMOA UP30-B Plastic Air Operated Double Diaphragm Pump

SAMOA UP30-B Plastic Air Operated Double Diaphragm Pump

$1,299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SAMOA UP30-B Plastic Air Operated Double Diaphragm Pump is a game-changer in the pumping industry. Featuring a revolutionary frictionless air pivot valve that reverses stroke instantaneously, this pump boasts higher efficiency, lower air consumption, and reduced pulsation & vibration compared to competitors. With a maximum flow of 264 gpm and a pressure range of 20 to 120 psi, this pump is perfect for handling abrasives, slurries, resins, corrosive fluids, shear-sensitive materials, and more. Its lube-free design allows it to run dry, dirty, or damp without issues, ensuring reliable operation across various applications. Easy maintenance with modular air valve access, low sound levels, leak-free bolted diaphragms, and compatibility with multiple fluid types make the SAMOA UP30-B an ideal choice for demanding environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Dimensions
See photo and brochure for dimensions.
Specifications Features
Perfect for Resins, Paint, Solvents, Corrosive, Shear Sensitive, Suspended Solids, Viscous Fluids, Self-Priming, Chemicals, Acids, Caustics, AlkalisFiltration, Chemical Process, Paints, Solvents, Coatings, Oils, Adhesives, Inks, Glue, Marine, Varnish, Construction, Pharmaceutical, Food & Beverage, Plating, SemiconductorRevolutionary Frictionless (Non-Wearing) Air Pivot Valve, Reverses Stroke Instantaneously resulting in Higher Efficiency, Lower Air Consumption, Pulsation & VibrationLube Free Frictionless (Non-Wearing) Air Pivot Valve Runs Dry, Dirty or Damp on Lubricated or NON-Lubricated AirUP-Universal Pumps-Matches Relative Dimensions of Major Competitive Brands for Easy Direct InterchangeabilityEasy Access Modular Air Valve- Repair or Replace without Pump DisassemblyIncreased Reliability-No Stall, No-Icing, Low Pressure (20+ psi) Start-Up with our 3S-Smooth Start ShifterAvailable in Polypropylene, PVDF, Certified Groundable ATEXOvermolded, 2-Piece & Conventional Diaphragms as Service RequiresReversible Seats Reduce Replacement CostsLow-Velocity, Low-Friction Oversized Manifolds Reduce Abrasion/WearFlexible Port Configurations with ANSI/DIN FlangesSame Bolt Simplicity (Diaphragms & Manifolds) Avoids Assembly ErrorsLow Sound Level (85 dBa or Less) at 50 Stroke/Minute and 70 psi or lessLeak-Free Bolted Diaphragms- No Mechanical Seals or Packing to FailVirtually Eliminates Pulsation DampenersPumps & Spare Parts In Stock
Specifications Fluid Connection
3"x150lb ANSI FLANGE | DN 80 FLANGE
Specifications Maximum Flow
264 gpm
Specifications Maximum Solids
1/2 in | 12.7 mm
Specifications Maximum Wet Suction Lift
26 ft
Specifications Model Number
UP30-B
Specifications Pressure Range
20 to 120 psi
