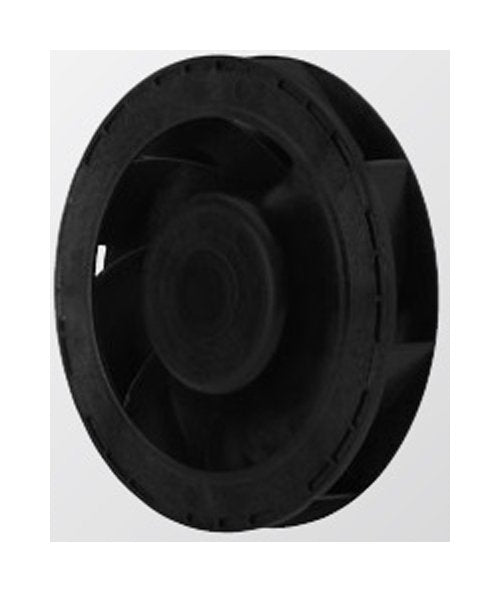

The San Ace 100W Series Splash Proof Centrifugal Fan is a high-performance fan designed for industrial applications where reliability and durability are paramount. With a sturdy aluminum frame, UL94V-0 rated plastic impeller, and a wide operating temperature range, this fan ensures efficient cooling even in challenging environments. It features precise PWM control, delivering consistent airflow between 0.51-1.77 m³/min while maintaining low noise levels of 34-60 dBA. Trusted for its longevity with an expected life of 70,000 hours, this fan is a reliable choice for critical cooling needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
100 x 25 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
160 g
Specifications Maximum Air Flow
1.77 m³/min | 62.5 ft³/min
Specifications Maximum Rated Current
0.22 A
Specifications Maximum Rated Input Power
10.56 W
Specifications Maximum Rated Speed
6400 rpm
Specifications Maximum Sound Pressure Level
60 dBA
Specifications Maximum Static Pressure
560 Pa | 2.25 inH2O
Specifications Minimum Air Flow
0.51 m³/min | 18.0 ft³/min
Specifications Minimum Rated Current
0.04 A
Specifications Minimum Rated Input Power
1.92 W
Specifications Minimum Rated Speed
2000 rpm
Specifications Minimum Sound Pressure Level
34 dBA
Specifications Minimum Static Pressure
48 Pa | 0.19 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
36 to 60 V
Specifications Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
