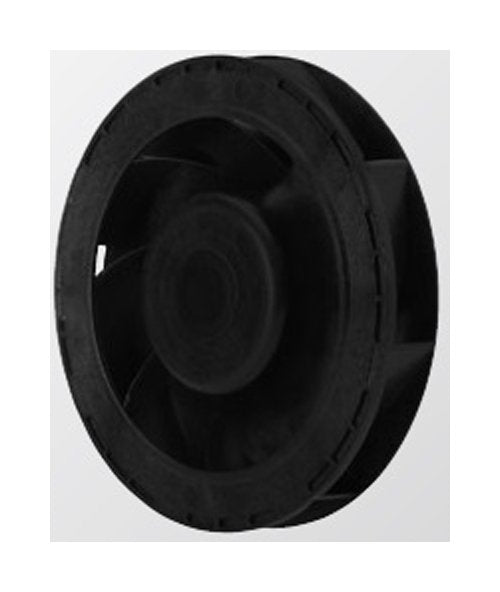

San Ace 100W Splash Proof Centrifugal Fan - 48V, 7400 RPM

Name: San Ace 100W Splash Proof Centrifugal Fan - 48V, 7400 RPM
Brand: Marsh Electronics, Inc.
SKU: SAN-df1996
Price: 29.99 USD
Availability: OutOfStock

SKU:SAN-df1996

San Ace 100W Splash Proof Centrifugal Fan - Reliable cooling for industrial applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 100W Series Splash Proof Centrifugal Fan is a reliable cooling solution designed for demanding industrial applications. With dimensions of 100 x 25 mm and featuring an aluminum frame with black coating, this fan ensures efficient heat dissipation. The impeller, made of UL94V-0 rated plastics, guarantees safety and durability. Operating within a wide voltage range of 36 to 60V and boasting a rated speed of 7400 rpm, this fan provides a high air flow of 2.03 m³/min while maintaining a quiet operation at 65 dBA. With an expected life of 40,000 hours at 60°C, this fan is a cost-effective and long-lasting solution for cooling systems.

Product Specifications

Specifications Air Flow

2.03 mÂ³/min | 71.7 ftÂ³/min

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black

Specifications Control Lead Wire Color

Brown

Specifications Dimensions

100 x 25 mm

Specifications Expected Life At 60c

40,000 hours

Specifications Frame Material

Aluminum (Black coating)

Specifications Impeller Material

Plastics (Flammability: UL94V-0)

Specifications Mass

160 g

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Note

Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

36 to 60 V

Specifications Pulse Width Modulation Pwm Duty Cycle

100 %

Specifications Pulse Width Modulation Pwm Frequency

25 kHz

Specifications Rated Current

0.36 A

Specifications Rated Input Power

17.28 W

Specifications Rated Speed

7400 rpm

Specifications Rated Voltage

48 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

65 dBA

Specifications Static Pressure

708 Pa | 2.84 inH2O

San Ace 100W Splash Proof Centrifugal Fan - 48V, 7400 RPM
