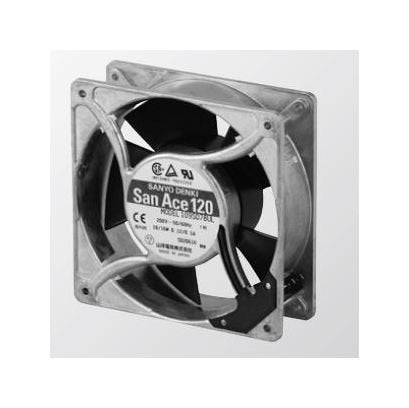

The San Ace 120 Series 120mm AC Fan (Product Code: 109S008UL) is a cutting-edge cooling solution designed for high-performance industrial and institutional applications. With dimensions of 120x120x38mm and a sturdy aluminum frame, this fan ensures reliable heat dissipation while weighing only 550g. Its UL94V-1 rated plastic impeller guarantees safety against flammability risks. Operating at a rated voltage of 200V with a frequency of 50/60Hz, this fan delivers optimal airflow of up to 2.7m³/min. Additionally, it meets stringent dielectric strength standards and has an expected lifespan of 25,000 hours at 60°C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.09/0.08 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.13/0.11 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.35/2.7 m³/min | 83 / 95.4 ft³/min
Specifications Maximum Static Pressure
55.9/65.7 Pa | 0.224/0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
40/43 dBA
