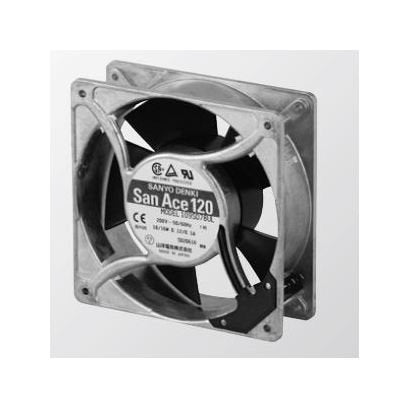

San Ace 120 Series AC Cooling Fan - 120mm x 38mm
San Ace 120 Series AC Cooling Fan - 120mm x 38mm
SKU:SAN-90a919
High-performance 120mm x 38mm AC cooling fan with durable construction and UL94V-1 rated impeller. Ideal for consumer and institutional use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120 Series AC Cooling Fan - 120mm x 38mm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Cooling Fan - 120mm x 38mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109S025 San Ace 120 Series AC Fan is a high-performance cooling solution designed for optimal airflow in various applications. With its durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures reliable operation and safety. Featuring a dielectric strength of up to 1,500VAC, it excels in maintaining stable performance under demanding conditions. Operates efficiently at 230V rated voltage with low noise levels, making it ideal for both consumer and institutional needs. Enjoy long-lasting cooling performance with an expected lifespan of 25,000 hours at 60°C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.08/0.07 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.11/0.09 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.35/2.7 m³/min | 83 / 95.4 ft³/min
Specifications Maximum Static Pressure
55.9/65.7 Pa | 0.224/0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
40/43 dBA
