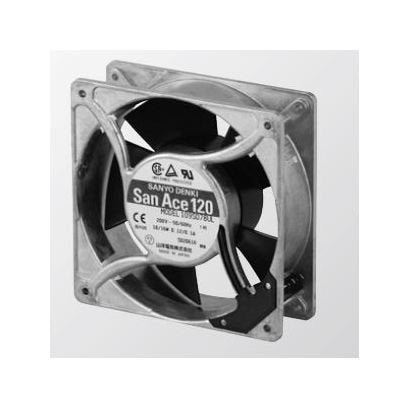

San Ace 120 Series AC Fan - 109S005UL
San Ace 120 Series AC Fan - 109S005UL
SKU:SAN-fcd60f
San Ace 120 Series AC Fan - Model 109S005UL. High-performance cooling for consumer and institutional settings.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan - 109S005UL
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan - 109S005UL
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan, model 109S005UL, is a high-performance cooling solution designed for both consumer and institutional needs. With a durable aluminum frame and UL94V-1 rated plastics impeller, this fan ensures reliable operation and safety. It complies with stringent dielectric strength requirements and operates efficiently in temperatures ranging from -30 to +60°C. Delivering impressive air flow and static pressure while maintaining low noise levels, this fan is ideal for various applications demanding high-performance cooling.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.18/0.16 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.25/0.22 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.35/2.7 m³/min | 83 / 95.4 ft³/min
Specifications Maximum Static Pressure
55.9/65.7 Pa | 0.224/0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
40/43 dBA
