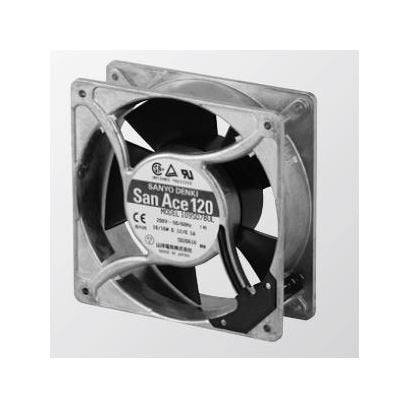

San Ace 120 Series AC Fan 109S006
San Ace 120 Series AC Fan 109S006
SKU:SAN-c585e5
Efficient San Ace 120 Series AC Fan for industrial cooling needs with durable construction and high airflow performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan 109S006
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan 109S006
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan 109S006 is a high-performance cooling solution designed for industrial and commercial applications. With dimensions of 120x120x38 mm and a lightweight aluminum frame, this fan delivers reliable cooling while meeting institutional standards. The impeller, made of UL94V-1 rated plastics, ensures safety and durability. Operating within a wide voltage range and offering a rated speed of 1650-1700 RPM, this fan provides efficient airflow and optimal thermal management. With a long expected life of 25000 hours at 60°C, this fan is a dependable choice for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.1 /0.09 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
7/7 W
Specifications Locked Rotor Current
0.1/0.09 A
Specifications Mass
550 g
Specifications Maximum Air Flow
1.45/1.5 m³/min | 51.2/ 53 ft³/min
Specifications Maximum Static Pressure
17.6/17.6 Pa | 0.071/0.071 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1,650/1,700
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
24/24 dBA
