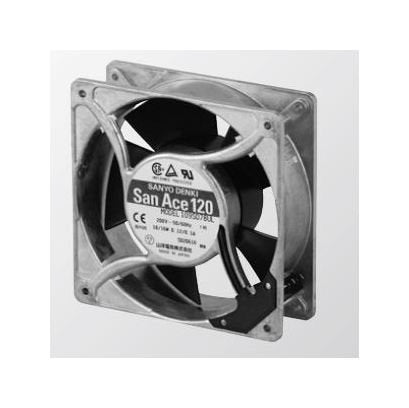

San Ace 120 Series AC Fan 109S072UL
San Ace 120 Series AC Fan 109S072UL
SKU:SAN-e8fe24
Enhance cooling efficiency with the San Ace 120 Series AC Fan 109S072UL. Optimal airflow and durability for industrial needs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan 109S072UL
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan 109S072UL
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan 109S072UL is a high-performance cooling solution designed for industrial and institutional applications. With dimensions of 120x120x38mm and a lightweight aluminum frame, this fan ensures efficient heat dissipation. The impeller, made from UL94V-1 rated plastics, guarantees safety in diverse environments. Operating at a rated voltage of 230V and a frequency of 50/60Hz, this fan delivers a maximum airflow of 2.9 m³/min, maintaining optimal operating temperatures. With a sound pressure level of 30dBA and an expected life of 25,000 hours at 60°C, this fan combines reliability and performance to meet stringent institutional procurement requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.11/0.09 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
18/16 W
Specifications Locked Rotor Current
0.14/0.13 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.5 /2.9 m³/min | 88.3/102.5 ft³/min
Specifications Maximum Static Pressure
57.9/68.7 Pa | 0.233/0.276 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
