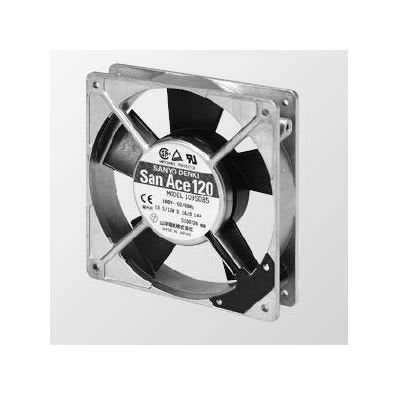

San Ace 120 Series AC Fan 109S083
San Ace 120 Series AC Fan 109S083
SKU:SAN-b2eebb
Reliable and efficient San Ace 120 Series AC Fan for optimal cooling performance. Aluminum frame, UL94V-1 plastic impeller, and low noise level.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan 109S083
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan 109S083
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan 109S083 offers reliable cooling performance, with dimensions of 120×120×25 mm and a lightweight aluminum frame. Featuring a UL94V-1 rated plastic impeller, it ensures safe usage with a dielectric strength of 50/60Hz 1,500VAC. With an operating voltage range of ±10% and a locked rotor current of 0.1/0.09 A, this fan delivers maximum airflow of 1.7/1.8 m³/min while maintaining a low sound pressure level of 34/35 dBA. Designed for endurance, it has an expected life of 25,000 hours at 60°C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.1 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9.5/8.5 W
Specifications Locked Rotor Current
0.1/0.09 A
Specifications Mass
370 g
Specifications Maximum Air Flow
1.7 /1.8 m³/min | 60.1/63.6 ft³/min
Specifications Maximum Static Pressure
29.4/26.5 Pa | 0.118/0.106 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,200/2,350
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
34/35 dBA
