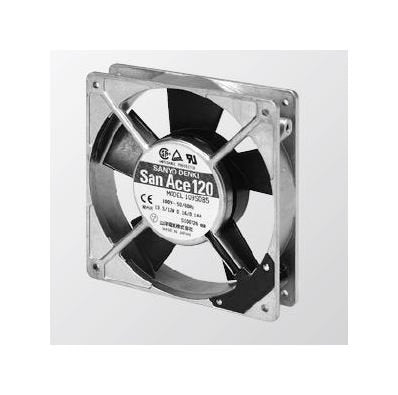

San Ace 120 Series AC Fan - 109S084
San Ace 120 Series AC Fan - 109S084
SKU:SAN-8212ca
Reliable San Ace 120 Series AC Fan (Model 109S084) for efficient cooling performance in compact dimensions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan - 109S084
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan - 109S084
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan (Model 109S084) is a high-quality cooling solution designed for precision performance and durability. With dimensions of 120x120x25 mm and a lightweight aluminum frame, this fan ensures efficient heat dissipation. The impeller material, UL94V-1 rated plastics, enhances safety with excellent flame resistance. Operating at 115V with a locked rotor current of 0.16A, it delivers a maximum air flow of 68.9 ft³/min and operates quietly at 38 dBA. Built to last with an expected life of 25,000 hours at 60°C, this fan is ideal for both consumer and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.14/0.12 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
13.5/12 W
Specifications Locked Rotor Current
0.16/0.15 A
Specifications Mass
370 g
Specifications Maximum Air Flow
1.95/2.3 m³/min | 68.9/81.3 ft³/min
Specifications Maximum Static Pressure
48 /51.9 Pa | 0.193/0.216 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,500/2,900
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
38/41 dBA
