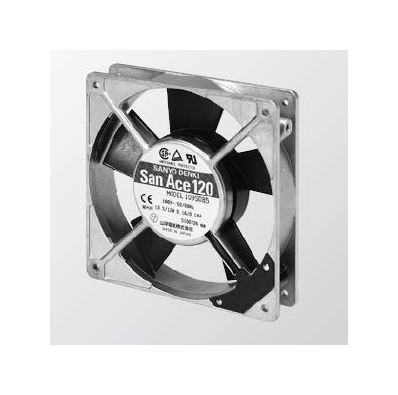

San Ace 120 Series AC Fan 109S488 with Sensor
San Ace 120 Series AC Fan 109S488 with Sensor
SKU:SAN-f64ec2
High-performance San Ace 120 Series AC Fan 109S488 with Sensor for efficient cooling in diverse settings.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan 109S488 with Sensor
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan 109S488 with Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan 109S488 is a high-quality cooling solution designed for both consumer and institutional buyers. This fan boasts a durable aluminum frame, UL94V-1 rated plastic impeller, and advanced sensor technology for efficient operation. With dielectric strength up to 1,500VAC, this fan ensures safe and reliable performance. It operates at a rated voltage of 200V, producing a maximum air flow of 2.3 m³/min and a maximum static pressure of 51.9 Pa. Additionally, with a sound pressure level of 41 dBA, this fan delivers quiet cooling in diverse environments. Ideal for various applications, this fan offers a long service life of up to 25,000 hours at 60°C, making it a reliable choice for institutional procurement requirements.
Product Specifications
Specifications Current
0.08/0.07 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
13.5/12 W
Specifications Locked Rotor Current
0.1/0.09 A
Specifications Mass
390 g
Specifications Maximum Air Flow
1.95/2.3 m³/min | 68.9/81.3 ft³/min
Specifications Maximum Static Pressure
48 /51.9 Pa | 0.193/0.216 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,500/2,900
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
38/41 dBA
