San Ace 120 Series AC Fan 120mm
San Ace 120 Series AC Fan 120mm
SKU:SAN-fef7c5
Reliable San Ace 120 Series AC Fan 120mm for efficient cooling.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan 120mm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan 120mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

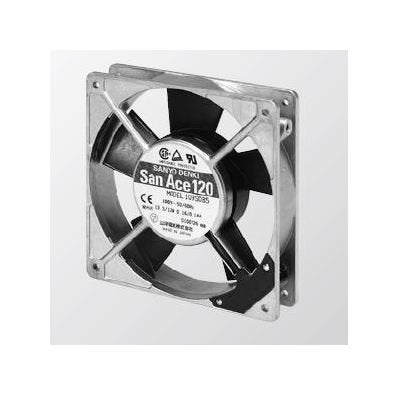

The San Ace 120 Series AC Fan 120mm is a reliable cooling solution designed for optimal performance in various applications. With dimensions of 120x120x25mm and a frame made of aluminum, this fan ensures durability and efficient heat dissipation. The impeller, constructed from UL94V-1 rated plastics, enhances safety. Operating at a voltage of 230V with a rated speed of 2,200/2,350 RPM, it delivers a maximum airflow of 1.7/1.8 m³/min. This fan meets stringent Dielectric Strength requirements and has an expected life of 25,000 hours at 60°C, making it a dependable choice for long-term use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.06 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9.5/8.5 W
Specifications Locked Rotor Current
0.06/0.05 A
Specifications Mass
370 g
Specifications Maximum Air Flow
1.7 /1.8 m³/min | 60.1/63.6 ft³/min
Specifications Maximum Static Pressure
29.4/26.5 Pa | 0.118/0.106 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,200/2,350
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
34/35 dBA
