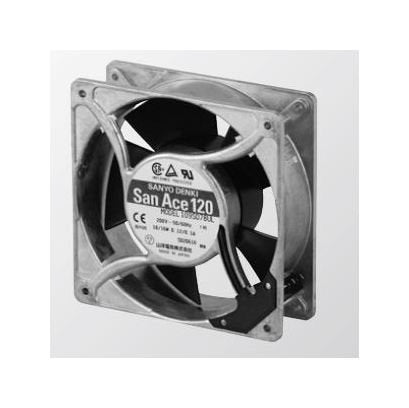

San Ace 120 Series AC Fan 120S010
San Ace 120 Series AC Fan 120S010
SKU:SAN-007ffe
Enhance cooling efficiency with the San Ace 120 Series AC Fan 120S010. Reliable, durable, and compliant with industrial standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan 120S010
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan 120S010
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan 120S010 is a high-performance cooling solution designed for industrial and institutional settings. With dimensions of 120×120×38 mm and a durable aluminum frame, this fan ensures optimal airflow and heat dissipation. Its UL94V-1 rated plastics impeller enhances safety, meeting strict flammability standards. Operating at 200V, 50/60Hz, this fan delivers efficient cooling with a sound pressure level of 24 dBA. The dielectric strength and temperature tolerance make it ideal for demanding environments, offering reliability and longevity with an expected life of 25,000 hours at 60°C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.05/0.04 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
7/7 W
Specifications Locked Rotor Current
0.05/0.04 A
Specifications Mass
550 g
Specifications Maximum Air Flow
1.45/1.5 m³/min | 51.2/ 53 ft³/min
Specifications Maximum Static Pressure
17.6/17.6 Pa | 0.071/0.071 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1,650/1,700
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
24/24 dBA
