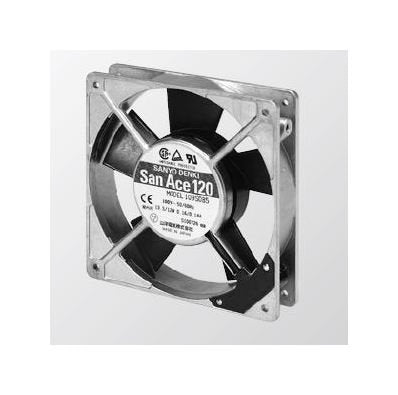

San Ace 120 Series AC Fan - 120x120x25 mm
San Ace 120 Series AC Fan - 120x120x25 mm
SKU:SAN-8358e8
Reliable and efficient San Ace 120 Series AC Fan for optimal cooling, featuring aluminum frame, UL94V-1 rated plastic impeller, and 2-speed options for versatile airflow.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan - 120x120x25 mm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan - 120x120x25 mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109S088 model from the San Ace 120 Series AC Fan delivers reliable cooling with its aluminum frame and UL94V-1 rated plastic impeller. With dielectric strength meeting strict standards, this fan ensures safety with 200V rated voltage, operational efficiency, and longevity with an expected life of 25,000 hours at 60°C. Its 2-speed options provide versatile airflow, ranging from 1.95 to 2.3 m³/min. Ideal for government and institutional settings requiring durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.08/0.07 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
13.5/12 W
Specifications Locked Rotor Current
0.1/0.09 A
Specifications Mass
370 g
Specifications Maximum Air Flow
1.95/2.3 m³/min | 68.9/81.3 ft³/min
Specifications Maximum Static Pressure
48 /51.9 Pa | 0.193/0.216 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,500/2,900
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
38/41 dBA
