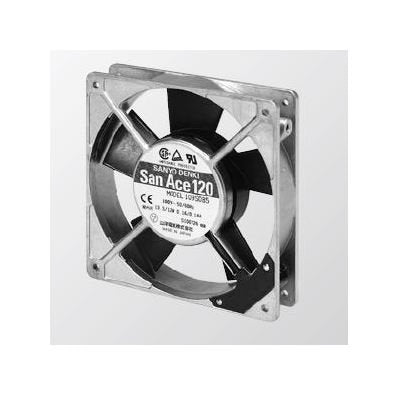

San Ace 120 Series AC Fan, 120x120x25mm, UL94V-1 Compliant
San Ace 120 Series AC Fan, 120x120x25mm, UL94V-1 Compliant
SKU:SAN-8584fb
High-performance 120x120x25mm AC Fan with UL94V-1 compliant materials for efficient cooling in industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan, 120x120x25mm, UL94V-1 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan, 120x120x25mm, UL94V-1 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109S085 San Ace 120 Series AC Fan is a high-performance cooling solution designed for industrial applications. With a robust aluminum frame and UL94V-1 compliant plastic impeller, this fan ensures reliable operation and efficient heat dissipation. It features a dielectric strength of 1,500VAC, operating voltage of 100V, and a rated speed of 2,500/2,900 RPM. With a maximum airflow of 1.95/2.3 m³/min and low sound pressure levels of 38/41 dBA, this fan provides optimal cooling with minimal noise. Its durable construction and long expected life of 25,000 hours make it a dependable choice for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.16/0.14 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
13.5/12 W
Specifications Locked Rotor Current
0.19/0.17 A
Specifications Mass
370 g
Specifications Maximum Air Flow
1.95/2.3 m³/min | 68.9/81.3 ft³/min
Specifications Maximum Static Pressure
48 /51.9 Pa | 0.193/0.216 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,500/2,900
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
38/41 dBA
