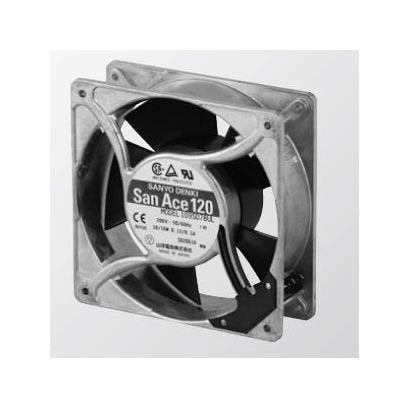

San Ace 120 Series AC Fan - 120x120x38 mm, UL94V-1 Plastics, 100V, 1,800/2,000 RPM
San Ace 120 Series AC Fan - 120x120x38 mm, UL94V-1 Plastics, 100V, 1,800/2,000 RPM
SKU:SAN-b512b5
Reliable San Ace 120 Series AC Fan with UL94V-1 plastics, 100V, 1,800/2,000 RPM. Ideal for cooling in diverse environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan - 120x120x38 mm, UL94V-1 Plastics, 100V, 1,800/2,000 RPM
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan - 120x120x38 mm, UL94V-1 Plastics, 100V, 1,800/2,000 RPM
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan is a reliable cooling solution ideal for both consumer and institutional environments. With a sturdy aluminum frame and UL94V-1 plastics impeller, it meets stringent safety standards. Operating at 100V with a rated speed of 1,800/2,000 RPM, this fan delivers a maximum air flow of 1.55/1.75 m³/min. Designed for durability, it can operate in temperatures ranging from -30 to +60°C, ensuring longevity and high performance. Trust the San Ace 120 Series AC Fan for efficient cooling in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.16/0.14 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
13/11 W
Specifications Locked Rotor Current
0.16/0.15 A
Specifications Mass
550 g
Specifications Maximum Air Flow
1.55/1.75 m³/min | 54.8/ 60.8 ft³/min
Specifications Maximum Static Pressure
23.5/26.4 Pa | 0.094/0.106 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1,800/2,000
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
30/32 dBA
