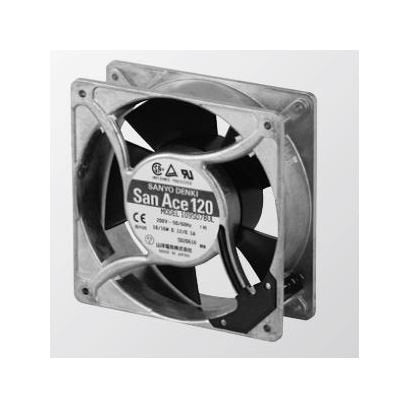

San Ace 120 Series AC Fan - 120x120x38mm
San Ace 120 Series AC Fan - 120x120x38mm
SKU:SAN-0e18f1
High-performance San Ace 120 Series AC Fan with aluminum frame, UL94V-1 plastic impeller, and 25,000 hours life span. Ideal for industrial and consumer applications.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan - 120x120x38mm
$42.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan - 120x120x38mm
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan is a high-performance cooling solution ideal for both industrial and consumer applications. With a durable aluminum frame and UL94V-1 rated plastic impeller, it ensures reliable operation and long-lasting performance. This fan boasts a dielectric strength of 1,500VAC, and a wide operating temperature range of -30 to +60 °C, making it suitable for diverse environments. Delivering a maximum air flow of 2.7 m³/min and a sound pressure level of 43 dBA, it combines efficiency with low noise levels. Backed by an expected life of 25,000 hours at 60°C, this fan is a dependable choice for critical cooling needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.09/0.08 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.13/0.11 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.35/2.7 m³/min | 83 / 95.4 ft³/min
Specifications Maximum Static Pressure
55.9/65.7 Pa | 0.224/0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
40/43 dBA
