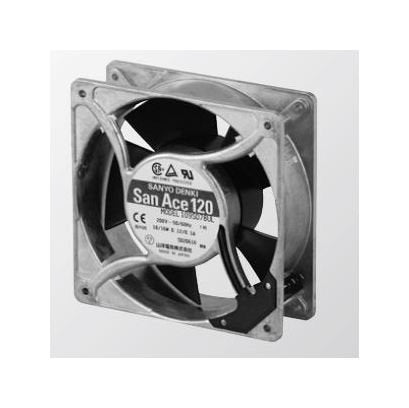

The 109S006UL San Ace 120 Series AC Fan is a reliable cooling solution designed for both consumer and institutional applications. With dimensions of 120x120x38mm and a lightweight aluminum frame, this fan is durable and efficient. It features a UL94V-1 compliant plastic impeller for added safety. Operating at 115V and 50/60Hz, it delivers optimal airflow of up to 1.64 m³/min with a low sound level of 31dBA. The fan's dielectric strength, locked rotor current, and operating temperature range make it suitable for a wide range of environments. Trust in its expected 25,000-hour lifespan even in demanding conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.13/0.11 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
10/10 W
Specifications Locked Rotor Current
0.13/0.11 A
Specifications Mass
550 g
Specifications Maximum Air Flow
1.56/1.64 m³/min | 55 / 57.9 ft³/min
Specifications Maximum Static Pressure
20 /20.6 Pa | 0.080/0.083 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1,800/1,900
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
30/31 dBA
