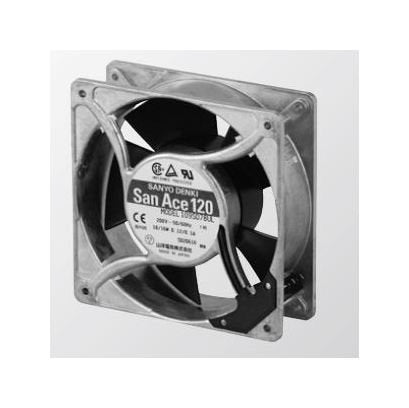

The 109S075UL San Ace 120 Series AC Fan is a premium cooling solution designed for optimal performance in industrial and institutional settings. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures reliable operation and safety compliance. Featuring impressive specifications such as a dielectric strength of 1,500VAC and a maximum air flow of 2.9 m³/min, it guarantees efficient cooling in demanding environments. This fan operates quietly at 28-30 dBA, making it ideal for noise-sensitive applications. Trusted for its longevity with an expected life of 25,000 hours at 60ºC, this fan is a dependable choice for government and institutional procurement needs.
Product Specifications
Specifications Current
0.24/0.21 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
18/16 W
Specifications Locked Rotor Current
0.32/0.28 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.5 /2.9 m³/min | 88.3/102.5 ft³/min
Specifications Maximum Static Pressure
57.9/68.7 Pa | 0.233/0.276 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
