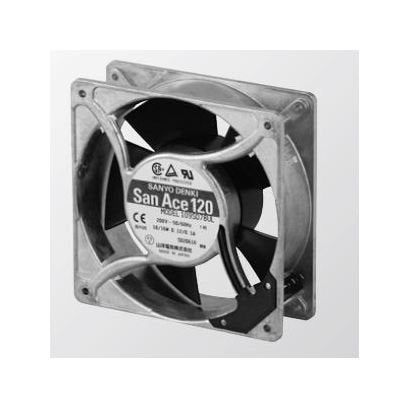

San Ace 120 Series AC Fan, Model 109S005
San Ace 120 Series AC Fan, Model 109S005
SKU:SAN-fcd175
Efficient and reliable San Ace 120 Series AC Fan for superior cooling performance in demanding environments.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan, Model 109S005
$45.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan, Model 109S005
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan, Model 109S005, is a high-performance cooling solution designed for reliability and efficiency. With dimensions of 120x120x38 mm and an aluminum frame, this fan ensures durability and excellent thermal management. The impeller is made of UL94V-1 rated plastics, guaranteeing safety. Operating at a rated voltage of 100V and a frequency of 50/60 Hz, it offers a maximum air flow of 2.7 m³/min and a maximum static pressure of 65.7 Pa. This fan meets stringent industry standards and is suitable for diverse applications where reliable cooling is essential.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.18/0.16 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.25/0.22 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.35/2.7 m³/min | 83 / 95.4 ft³/min
Specifications Maximum Static Pressure
55.9/65.7 Pa | 0.224/0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
40/43 dBA
