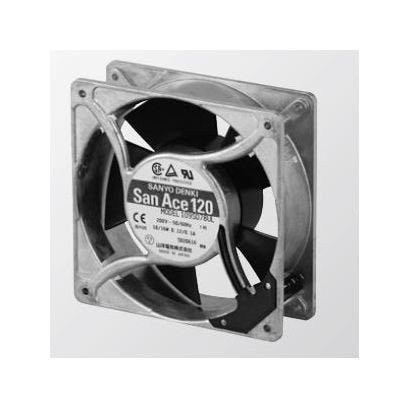

San Ace 120 Series AC Fan - Model 109S010UL
San Ace 120 Series AC Fan - Model 109S010UL
SKU:SAN-17c6b9
Enhance cooling with the San Ace 120 Series AC Fan - Model 109S010UL. Durable, efficient, and reliable for consumer and institutional applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan - Model 109S010UL
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan - Model 109S010UL
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior cooling efficiency with the San Ace 120 Series AC Fan Model 109S010UL. This fan features a durable aluminum frame and UL94V-1 rated plastics for enhanced safety. With dimensions of 120x120x38 mm, it operates at a rated voltage of 240V and provides a maximum air flow of 1.68 m³/min. Designed for reliability and longevity, it has an expected life of 25,000 hours at 60ºC. Ideal for both consumer and institutional use, this fan ensures high performance in a wide range of operating conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.06/0.05 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
11/11 W
Specifications Locked Rotor Current
0.06/0.05 A
Specifications Mass
550 g
Specifications Maximum Air Flow
1.58/1.68 m³/min | 55.8/ 59.3 ft³/min
Specifications Maximum Static Pressure
20.6/21.6 Pa | 0.083/0.087 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1,800/1,950
Specifications Rated Voltage
240 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
30/32 dBA
