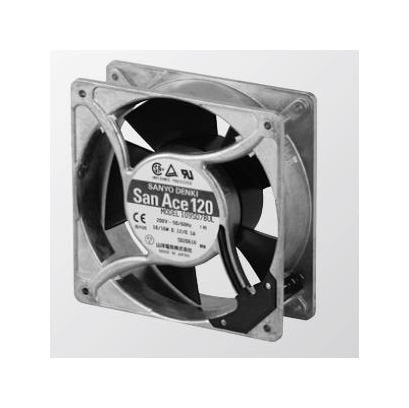

San Ace 120 Series AC Fan, Model 109S024UL
San Ace 120 Series AC Fan, Model 109S024UL
SKU:SAN-9e87b4
Efficient San Ace 120 Series AC Fan for reliable cooling in industrial settings
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan, Model 109S024UL
$59.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan, Model 109S024UL
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan, Model 109S024UL, is a high-performance cooling solution designed for industrial and institutional applications. With dimensions of 120x120x38 mm and a lightweight aluminum frame, this fan ensures effective heat dissipation while maintaining durability. Featuring UL94V-1 rated plastic impellers, this fan guarantees safe and reliable operation. It meets stringent dielectric strength standards and operates within a wide temperature range, making it ideal for demanding environments. With an expected life of 25,000 hours at 60°C, this fan offers long-term reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.16/0.14 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.21/0.18 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.35/2.7 m³/min | 83 / 95.4 ft³/min
Specifications Maximum Static Pressure
55.9/65.7 Pa | 0.224/0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
40/43 dBA
