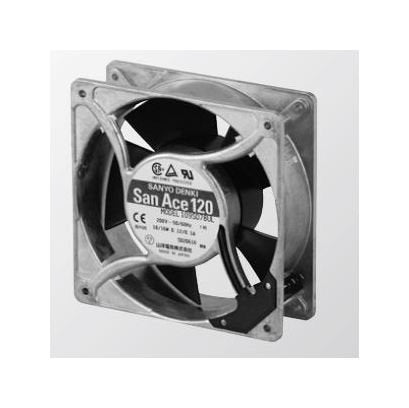

San Ace 120 Series AC Fan - Model 109S029UL
San Ace 120 Series AC Fan - Model 109S029UL
SKU:SAN-31c7b0
Powerful and reliable San Ace 120 Series AC Fan, Model 109S029UL, with UL94V-1 rated plastic impeller, ideal for efficient cooling in various setups.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan - Model 109S029UL
$45.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan - Model 109S029UL
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan, Model 109S029UL, is a high-quality cooling solution designed for efficient and reliable performance. With dimensions of 120x120x38 mm and a lightweight aluminum frame, this fan is durable and built to last. The impeller is made of UL94V-1 rated plastics, ensuring safety and compliance with flammability standards. Operating at a rated voltage of 100V and a frequency of 50/60Hz, it offers a maximum air flow of 2.35 m³/min and a maximum static pressure of 49.0 Pa. This fan is suitable for a wide range of applications and guarantees a long service life of up to 25,000 hours at 60°C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.18/0.16 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.23/0.21 A
Specifications Mass
550 g
Specifications Maximum Air Flow
2.15/2.35 m³/min | 76 / 83 ft³/min
Specifications Maximum Static Pressure
44.1/49.0 Pa | 0.177/0.197 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,450/2,700
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
38/40 dBA
