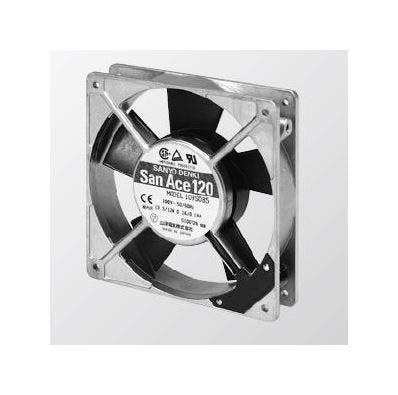

San Ace 120 Series AC Fan - Model 109S082
San Ace 120 Series AC Fan - Model 109S082
SKU:SAN-5d800c
Powerful and reliable San Ace 120 Series AC Fan providing exceptional cooling performance, built to last.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan - Model 109S082
$35.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan - Model 109S082
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan Model 109S082 sets a new standard for cooling efficiency and durability. With dimensions of 120x120x25 mm and a lightweight yet robust aluminum frame, this fan ensures optimal airflow for a variety of applications. The impeller, made of UL94V-1 rated plastics, guarantees safe and reliable operation. Noteworthy features include dielectric strength meeting 1,500VAC 1minute requirements, sensor-purposed lead wire colors for easy installation, and an extended operating temperature range from -30 to +60°C. Designed for longevity, this fan offers an expected life of 25,000 hours at 60°C, making it an ideal choice for both consumer and institutional buyers seeking high-performance cooling solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.07 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9.5/8.5 W
Specifications Locked Rotor Current
0.07/0.06 A
Specifications Mass
370 g
Specifications Maximum Air Flow
1.7 /1.8 m³/min | 60.1/63.6 ft³/min
Specifications Maximum Static Pressure
29.4/26.5 Pa | 0.118/0.106 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,200/2,350
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
34/35 dBA
