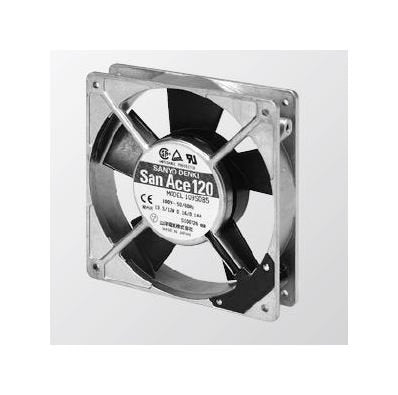

San Ace 120 Series AC Fan with Sensor
San Ace 120 Series AC Fan with Sensor
SKU:SAN-912c2d
High-performance 120x120x25 mm AC fan with sensor, aluminum frame, UL94V-1 impeller, 230V, quiet operation, and long lifespan.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan with Sensor
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan with Sensor
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109S487 San Ace 120 Series AC Fan with Sensor is a high-quality fan designed for efficient cooling in various applications. With dimensions of 120x120x25 mm and a durable aluminum frame, this fan ensures reliable performance. The impeller is made of plastics with a UL94V-1 flammability rating. It features a dielectric strength of 50/60Hz 1,500VAC 1 minute between input terminal and frame, meeting stringent safety standards. Operating at a voltage range of ±10% and a rated voltage of 230V, it delivers an airflow of 1.95/2.3 m³/min and operates quietly at 38/41 dBA. With an expected life of 25,000 hours at 60°C, this fan is built to last under demanding conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.07/0.06 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
13.5/12 W
Specifications Locked Rotor Current
0.08/0.07 A
Specifications Mass
390 g
Specifications Maximum Air Flow
1.95/2.3 m³/min | 68.9/81.3 ft³/min
Specifications Maximum Static Pressure
48 /51.9 Pa | 0.193/0.216 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,500/2,900
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
38/41 dBA
