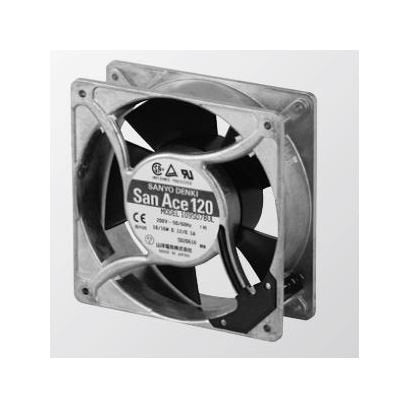

San Ace 120 Series AC Fan with Sensor
San Ace 120 Series AC Fan with Sensor
SKU:SAN-d28bcc
Reliable and efficient 120mm AC fan with sensor for optimal cooling in demanding environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan with Sensor
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan with Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109S474UL from the San Ace 120 Series is a high-performance AC fan designed for optimal airflow and cooling in demanding environments. Measuring 120x120x38 mm and constructed with aluminum frame and UL94V-1 rated plastic impeller, this fan ensures reliability and safety. With a dielectric strength of 1,500VAC, sensor integration for efficient monitoring, and an expected life of 25,000 hours, this fan is ideal for both consumer and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.21/0.18 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
18/16 W
Specifications Locked Rotor Current
0.27/0.24 A
Specifications Mass
580 g
Specifications Maximum Air Flow
2.5 /2.9 m³/min | 88.3/102.4 ft³/min
Specifications Maximum Static Pressure
57.9/68.7 Pa | 0.233/0.276 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
