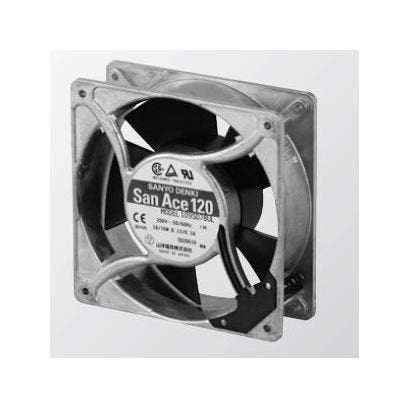

San Ace 120 Series AC Fan with Sensor 109S475UL
San Ace 120 Series AC Fan with Sensor 109S475UL
SKU:SAN-dd42b3
Powerful San Ace 120 Series AC Fan with Sensor for industrial cooling, high airflow, and durable construction.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan with Sensor 109S475UL
$79.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan with Sensor 109S475UL
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 120 Series AC Fan with Sensor model 109S475UL is a high-performance cooling solution designed for industrial and institutional applications. With precise dimensions of 120x120x38 mm and a durable aluminum frame, this fan ensures reliable and efficient operation. The impeller, made of flame-retardant plastics (UL94V-1), guarantees safety in various environments. Operating at a rated voltage of 100V with an input power of 18/16W, this fan delivers an optimal airflow of 2.5/2.9 m³/min and a maximum static pressure of 57.9/68.7 Pa. Built to withstand temperatures ranging from -10 to +60 °C, it boasts an expected lifespan of 25,000 hours, making it a top choice for long-term cooling needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.24/0.21 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
18/16 W
Specifications Locked Rotor Current
0.32/0.28 A
Specifications Mass
580 g
Specifications Maximum Air Flow
2.5 /2.9 m³/min | 88.3/102.4 ft³/min
Specifications Maximum Static Pressure
57.9/68.7 Pa | 0.233/0.276 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
28/30 dBA
