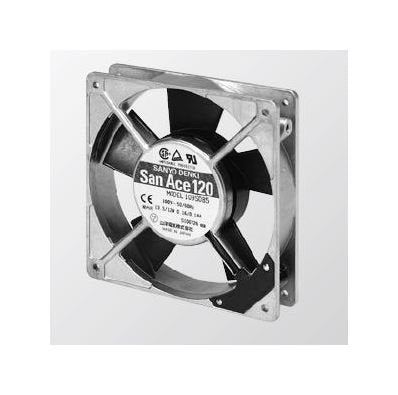

San Ace 120 Series AC Fan with Sensor - 120mm
San Ace 120 Series AC Fan with Sensor - 120mm
SKU:SAN-415d37
High-Performance 120mm AC Fan with Sensor for Reliable Cooling
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan with Sensor - 120mm
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan with Sensor - 120mm
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109S484 San Ace 120 Series AC Fan with Sensor is a high-performance cooling solution designed for reliable and efficient operation in both consumer and institutional settings. With dimensions of 120×120×25 mm and a lightweight aluminum frame, this fan ensures durability and optimal performance. The fan features UL94V-1 compliant plastic impeller material for safety and longevity. Operating at a rated voltage of 115V and an input of 13.5/12W, it delivers a maximum air flow of 1.95/2.3 m³/min and a maximum static pressure of 48 / 51.9 Pa. Additionally, it meets industry standards for dielectric strength, sound pressure level, and operating temperature, making it an ideal choice for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.14/0.12 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
13.5/12 W
Specifications Locked Rotor Current
0.16/0.15 A
Specifications Mass
390 g
Specifications Maximum Air Flow
1.95/2.3 m³/min | 68.9/81.3 ft³/min
Specifications Maximum Static Pressure
48 /51.9 Pa | 0.193/0.216 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,500/2,900
Specifications Rated Voltage
115 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
38/41 dBA
