San Ace 120 Series AC Fan with Sensor
San Ace 120 Series AC Fan with Sensor
SKU:SAN-0e897d
Efficient and durable San Ace 120 Series AC Fan with Sensor for reliable cooling solutions in diverse environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan with Sensor
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan with Sensor
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

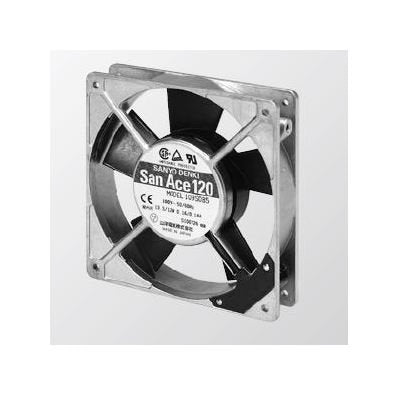

The San Ace 120 Series AC Fan with Sensor is a high-quality cooling solution designed for optimal performance and durability. With dimensions of 120x120x25 mm and a lightweight aluminum frame, it ensures efficient heat dissipation. The impeller is made of UL94V-1 rated plastics, meeting flammability standards. This fan offers reliable operation with a dielectric strength of 1,500VAC 1 minute between input terminal and frame. It operates at a rated voltage of 100V, providing a maximum air flow of 1.25 m³/min and a maximum static pressure of 18.6 Pa. Ideal for various applications, this fan guarantees a long lifespan of 25,000 hours at 60°C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.14/0.12 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
12/10 W
Specifications Locked Rotor Current
0.15/0.13 A
Specifications Mass
390 g
Specifications Maximum Air Flow
1.1 /1.25 m³/min | 38.9/44.2 ft³/min
Specifications Maximum Static Pressure
14.7/18.6 Pa | 0.059/0.075 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1,400/1,600
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
24/27 dBA
