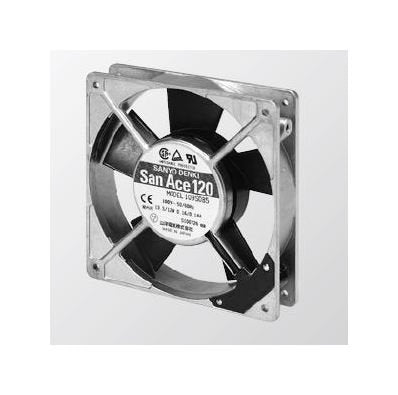

San Ace 120 Series AC Fan with Sensor
San Ace 120 Series AC Fan with Sensor
SKU:SAN-5815bc
Efficient and reliable San Ace 120 Series AC Fan with Sensor for cooling systems in IT, industrial, and telecommunications equipment.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan with Sensor
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan with Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109S485 San Ace 120 Series AC Fan with Sensor is a high-quality cooling solution designed to meet the demanding needs of both consumer and institutional buyers. With dimensions of 120×120×25 mm and a lightweight yet durable aluminum frame, this fan ensures efficient heat dissipation and long-lasting performance. The impeller material, UL94V-1 rated plastics, provides a safe and reliable airflow. Operating within a wide temperature range of -10 to +60 °C, this fan offers a rated voltage of 100 V and an operating voltage range of ±10%, making it versatile for various applications. With a maximum air flow of 1.95/2.3 m³/min and a maximum static pressure of 48/51.9 Pa, this fan delivers powerful cooling while maintaining a low sound pressure level of 38/41 dBA. The reliable San Ace 120 Series AC Fan with Sensor is an ideal choice for cooling systems in IT equipment, telecommunications, industrial machinery, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.16/0.14 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
13.5/12 W
Specifications Locked Rotor Current
0.19/0.17 A
Specifications Mass
390 g
Specifications Maximum Air Flow
1.95/2.3 m³/min | 68.9/81.3 ft³/min
Specifications Maximum Static Pressure
48 /51.9 Pa | 0.193/0.216 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,500/2,900
Specifications Rated Voltage
100 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
38/41 dBA
