San Ace 120 Series AC Fan with Sensor
San Ace 120 Series AC Fan with Sensor
SKU:SAN-728048
Enhance cooling with the San Ace 120 AC Fan, featuring durable construction, efficient airflow, and low noise levels.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 120 Series AC Fan with Sensor
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series AC Fan with Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

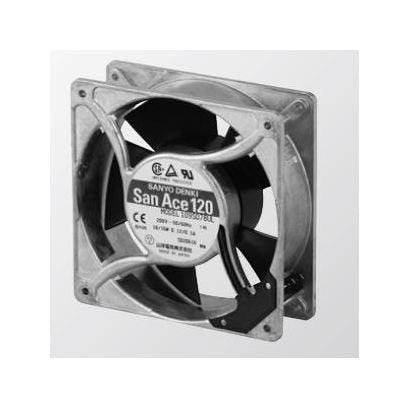

The San Ace 120 Series AC Fan with Sensor, model 109S408UL, is a top-of-the-line cooling solution for industrial and institutional applications. With dimensions of 120×120×38 mm and a lightweight aluminum frame, this fan ensures efficient heat dissipation. The impeller, made of flame-retardant UL94V-1 plastics, enhances safety. Operating at a voltage range of ±10% around the rated 200V and a frequency of 50/60 Hz, this fan delivers a reliable airflow of 2.35/2.7 m³/min with low noise levels of 40/43 dBA. Designed for durability, it has an expected lifespan of 25,000 hours at 60°C, making it ideal for long-term use in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.09/0.08 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.13/0.11 A
Specifications Mass
580 g
Specifications Maximum Air Flow
2.35/2.7 m³/min | 83/95.4 ft³/min
Specifications Maximum Static Pressure
55.9/65.7 Pa | 0.224/0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
200 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
40/43 dBA
