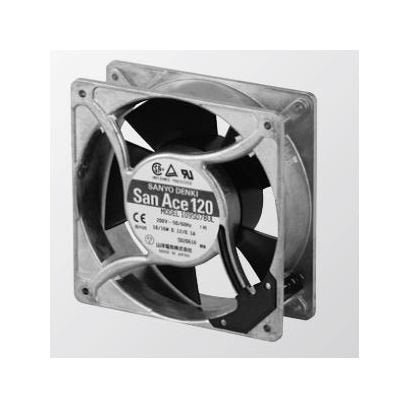

San Ace 120 Series UL-Certified 120mm AC Fan with Sensor
San Ace 120 Series UL-Certified 120mm AC Fan with Sensor
SKU:SAN-4c74ea
Reliable San Ace 120 Series AC Fan with Sensor, UL94V-1 Compliant, Quiet Operation, Longevity Guaranteed
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 120 Series UL-Certified 120mm AC Fan with Sensor
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 120 Series UL-Certified 120mm AC Fan with Sensor
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 109S425UL from the San Ace 120 Series is a high-performance 120x120x38 mm AC fan featuring an aluminum frame and UL94V-1 rated plastic impeller. With dielectric strength meeting stringent standards and sensor-enhanced safety features, this fan ensures reliable operation in sensitive environments. Operating at a quiet 40-43 dBA and offering a maximum airflow of 2.35-2.7 m³/min, it delivers optimal cooling with longevity of 25,000 hours at 60°C. Ideal for industrial and institutional applications, this fan combines cutting-edge technology with compliance to meet various standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.08/0.07 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between input terminal and frame)
Specifications Dielectric Strength With Sensor Between Ac Input
50/60 Hz 1,500 VAC 1 minute
Specifications Dielectric Strength With Sensor Between G And Dc
50/60Hz 1,000VAC 1minute
Specifications Dimensions
120Ã120Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
14/12 W
Specifications Locked Rotor Current
0.11/0.09 A
Specifications Mass
580 g
Specifications Maximum Air Flow
2.35/2.7 m³/min | 83/95.4 ft³/min
Specifications Maximum Static Pressure
55.9/65.7 Pa | 0.224/0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,100
Specifications Rated Voltage
230 V
Specifications Sensor Purpose Anode Lead Wire Color
Brown
Specifications Sensor Purpose Cathode Lead Wire Color
Black
Specifications Sensor Purpose Lead Wire Color
Yellow
Specifications Sound Pressure Level
40/43 dBA
