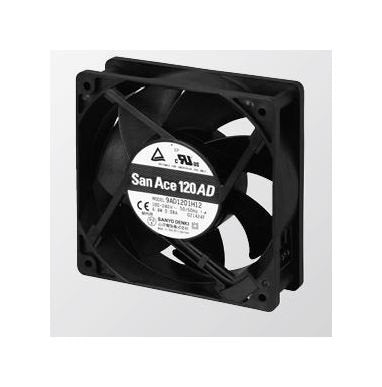

The 9AD1201H12 from the San Ace 120AD Series is a cutting-edge AC to DC power converting fan, expertly engineered to deliver superior performance by converting AC power internally to DC power. With dimensions of 120 × 120 × 38 mm and a lightweight design of 290g, this fan is crafted with high-quality plastic materials ensuring durability and safety (Flammability: UL94V-0). It operates within a wide voltage range of 90 to 264 V, offers a maximum air flow of 3.0 m³/min, and a maximum static pressure of 84 Pa, all while maintaining a low sound pressure level of 42 dBA. Designed for reliability, this fan has a rated life of 60,000 hours at 60ºC, making it a dependable choice for various cooling applications.
Product Specifications

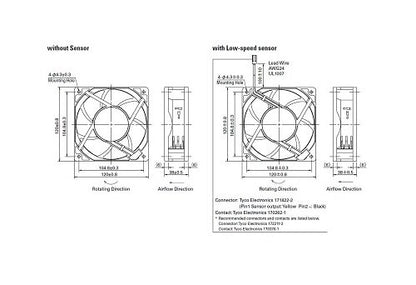

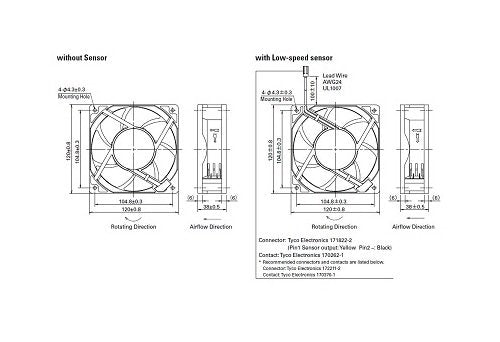

Specifications Dimensions
120 Ã 120 Ã 38 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
290 g
Specifications Maximum Air Flow
3.0 m³/min | 106 ft³/min
Specifications Maximum Static Pressure
84 Pa | 0.34 inH2O
Specifications Non Condensing Storage Temperature
-30 to +75 ºC
Specifications Operating Temperature
-20 to +75 ºC
Specifications Operating Voltage Range
90 to 264 V
Specifications Rated Current
0.08 A
Specifications Rated Input Power
4.4 W
Specifications Rated Speed
3250 rpm
Specifications Rated Voltage Range
100 to 240 V
Specifications Sound Pressure Level
42 dBA
