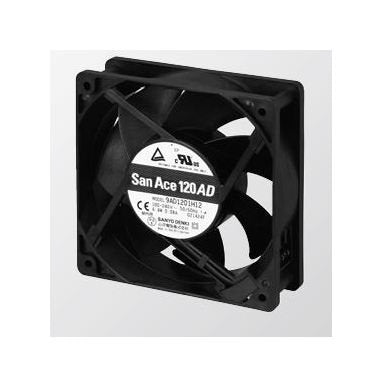

The San Ace 120AD Series Power Converting Fan seamlessly transforms AC power into DC power for optimal performance. With a frame and impeller made of high-quality flame-retardant plastics, this fan ensures safety and reliability. Operating within a wide voltage and temperature range, it offers high airflow and efficiency. Designed for longevity, this fan is ideal for both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

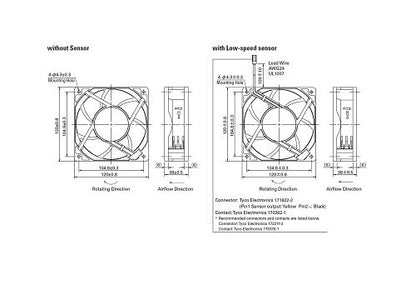

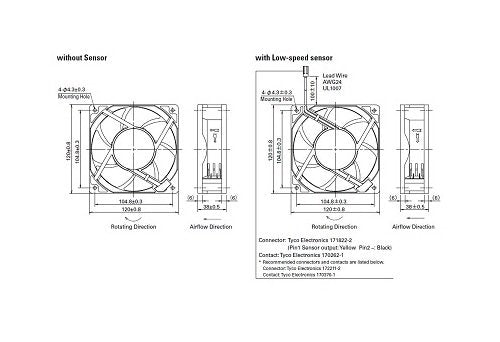

Specifications Dimensions
120 Ã 120 Ã 38 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
290 g
Specifications Maximum Air Flow
3.0 m³/min | 106 ft³/min
Specifications Maximum Static Pressure
84 Pa | 0.34 inH2O
Specifications Non Condensing Storage Temperature
-30 to +75 ºC
Specifications Operating Temperature
-20 to +75 ºC
Specifications Operating Voltage Range
90 to 264 V
Specifications Rated Current
0.08 A
Specifications Rated Input Power
4.4 W
Specifications Rated Speed
3250 rpm
Specifications Rated Voltage Range
100 to 240 V
Specifications Sound Pressure Level
42 dBA
