San Ace 120T Wide Temp Fan, 120x120x38mm, 12V, 2900-5600rpm
San Ace 120T Wide Temp Fan, 120x120x38mm, 12V, 2900-5600rpm
SKU:SAN-63e30e
High-performance San Ace 120T Wide Temp Fan for precise speed control and durability in extreme conditions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 120T Wide Temp Fan, 120x120x38mm, 12V, 2900-5600rpm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 120T Wide Temp Fan, 120x120x38mm, 12V, 2900-5600rpm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

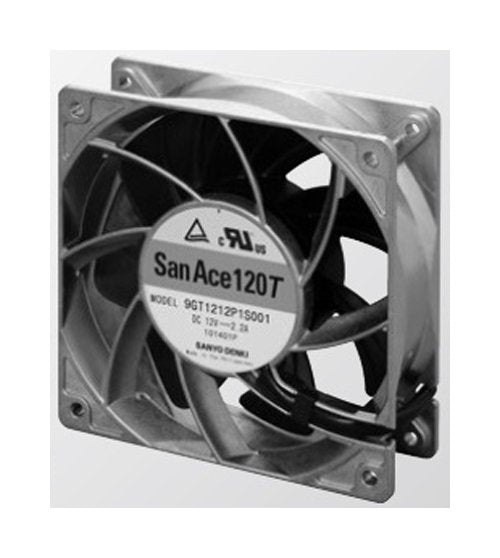

The 9GT1212P1S001 San Ace 120T Wide Temperature Range Fan is a high-performance cooling solution designed for critical applications. With a durable aluminum frame and UL94V-1 compliant plastic impeller, this fan operates within a wide temperature range of -40 to +85°C. It offers a PWM duty cycle range of 30% to 100% at a frequency of 25 kHz, ensuring precise speed control. Delivering a maximum airflow of 6.00 m³/min and a maximum static pressure of 270 Pa, this fan is ideal for maintaining optimal operating conditions in demanding environments. With a 40000-hour expected lifespan at 85°C, this fan combines reliability and efficiency for long-term performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 85c
40000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
420 g
Specifications Maximum Air Flow
6.00 m³/min | 211.8 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
2.2 A
Specifications Maximum Rated Input Power
26.4 W
Specifications Maximum Rated Speed
5600 rpm
Specifications Maximum Sound Pressure Level
58 dBA
Specifications Maximum Static Pressure
270 Pa | 1.08 inH2O
Specifications Minimum Air Flow
3.00 m³/min | 106.0 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.48 A
Specifications Minimum Rated Input Power
5.76 W
Specifications Minimum Rated Speed
2,900 rpm
Specifications Minimum Sound Pressure Level
41 dBA
Specifications Minimum Static Pressure
85.6 Pa | 0.34 inH2O
Specifications Non Condensing Storage Temperature
-40 to 85 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Operating Voltage Range
9.0 to 13.8 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
