San Ace 120W Series Splash Proof Fan
San Ace 120W Series Splash Proof Fan
SKU:SAN-d67182
Enhance cooling efficiency with the San Ace 120W Series Splash Proof Fan, ideal for various applications. Dimensions: 120 x 120 x 38 mm.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 120W Series Splash Proof Fan
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 120W Series Splash Proof Fan
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

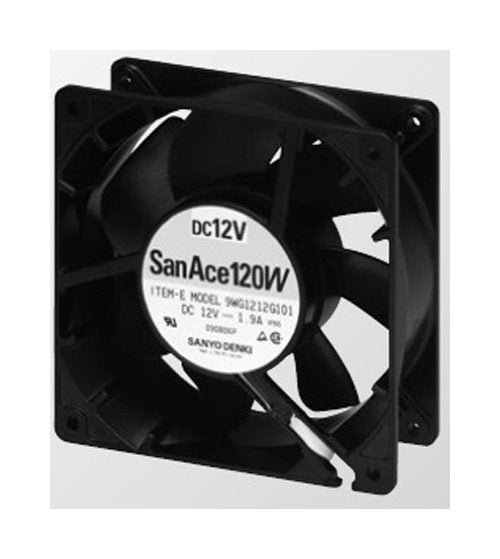

The San Ace 120W Series Splash Proof Fan, model 9WG1212F101-E, is a high-quality cooling solution designed for both consumer and institutional/government buyers. With dimensions of 120 x 120 x 38 mm and a durable aluminum frame, this fan ensures reliable performance in various operating conditions. The fan features a UL94V-1 rated plastic impeller, providing safety and efficiency. Operating within a voltage range of 7 to 13.8 V, it offers a rated airflow of 2.45 m³/min and a sound pressure level of 36 dBA. With an expected life of 100,000 hours at 60°C, this fan is a cost-effective and long-lasting cooling solution.
Product Specifications
Specifications Air Flow
2.45 m³/min | 87 ft³/min
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
120 x 120 x 38 mm
Specifications Expected Life At 60c
100000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
410 g
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
7 to 13.8 V
Specifications Rated Current
0.28 A
Specifications Rated Input Power
3.36 W
Specifications Rated Speed
2280 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
36 dBA
Specifications Static Pressure
54.2 Pa | 0.218 inH2O
